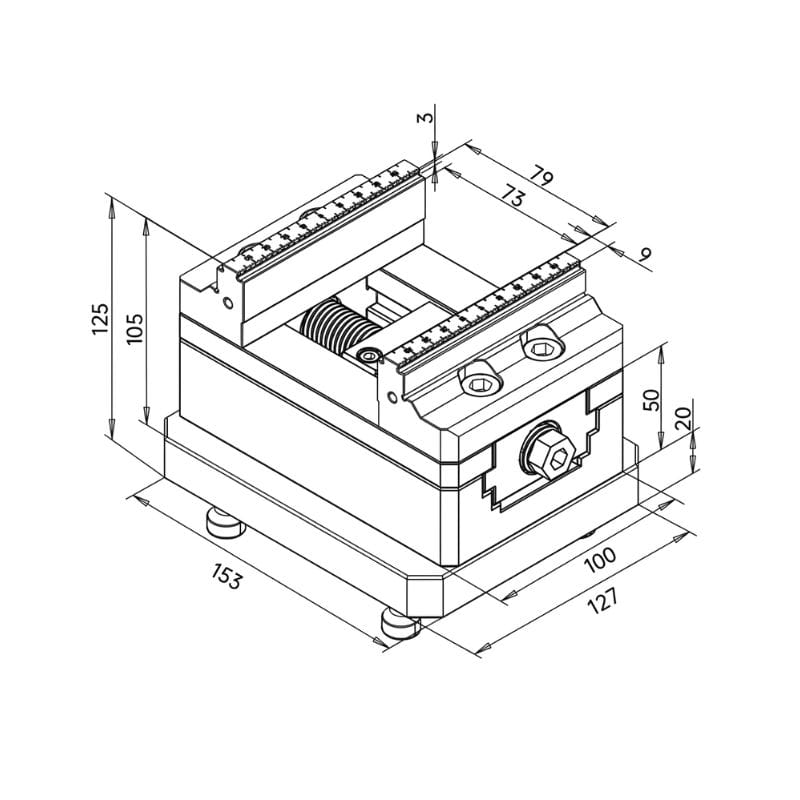

Self Centering Vise 153x127x125mm, with Bottom Zero Point Bolt
Precision self centering vise designed for CNC workholding, 5-axis machining, EDM workholding, and repeatable fixture setups. Built from chrome steel with 32–52 HRC hardness, this vise provides ≤0.01mm repeatability, 0–79mm clamping range, 10kN clamping power, and 65Nm max torque. Its 153x127x125mm body and bottom zero point bolt interface support accurate centering, strong part holding, and stable precision machining performance.
Read more
Self Centering Vise 153x127x110.5mm, with Bottom Zero Point Bolt
Precision self centering vise designed for CNC workholding, 5-axis machining, EDM workholding, and repeatable fixture setups. Built from chrome steel with 32–52 HRC hardness, this vise provides ≤0.01mm repeatability, 0–87mm clamping range, 10kN clamping power, and 65Nm max torque. Its 153x127x110.5mm body and bottom zero point bolt interface support accurate centering, strong part holding, and stable precision machining performance.
Read more
Self Centering Vise 127x127x90.5mm, with Bottom Zero Point Bolt
Precision self centering vise designed for CNC workholding, 5-axis machining, EDM workholding, and repeatable fixture setups. Built from hardened chrome steel with 48–52 HRC hardness, this vise provides ≤0.01mm repeatability, 0–70mm clamping range, 8000N clamping power, and 65Nm max torque. Its 127x127x90.5mm body and bottom zero point bolt interface support accurate centering, secure part holding, and stable precision machining performance.
Read more
Self Centering Vise 127x127x105mm, with Bottom Zero Point Bolt
Precision self centering vise designed for CNC workholding, 5-axis machining, EDM workholding, and repeatable fixture setups. Built from chrome steel with 32–52 HRC hardness, this vise provides ≤0.01mm repeatability, 0–46mm clamping range, 8000N clamping power, and 65Nm max torque. Its 127x127x105mm body and bottom zero point bolt interface support accurate centering, strong part holding, and stable precision machining performance.
Read more
Zero Point 5-Axis Self-Centering Vise 153x100x85mm
Precision Zero Point 5-Axis Self-Centering Vise designed for CNC workholding, 5-axis machining, EDM workholding, and repeatable fixture setups. Built from hardened chrome steel with 48–52 HRC hardness, this vise provides ≤0.01mm repeatability, 0–79mm clamping range, 10kN clamping power, and 70Nm max torque. Its 153x100x85mm body supports accurate centering, strong clamping, and stable precision machining performance.
Read more
Zero Point 5-Axis Self-Centering Vise 153x100x70.5mm
Precision Zero Point 5-Axis Self-Centering Vise designed for CNC workholding, 5-axis machining, EDM workholding, and repeatable fixture setups. Built from hardened chrome steel with 48–52 HRC hardness, this vise includes slotted jaws and provides ≤0.01mm repeatability, 0–87mm clamping range, 10kN clamping power, and 70Nm max torque. Its 153x100x70.5mm body supports accurate centering, strong clamping, and stable precision machining performance.
Read more
Zero Point 5-Axis Self-Centering Vise 120x90x76.2mm
Precision Zero Point 5-Axis Self-Centering Vise designed for CNC workholding, 5-axis machining, EDM workholding, and repeatable fixture setups. Built from hardened chrome steel with 48–52 HRC hardness, this vise includes gear clamps and provides ≤0.01mm repeatability, 0–40mm clamping range, 8kN clamping power, and 65Nm max torque. Its 120x90x76.2mm body supports accurate centering, secure part holding, and stable precision machining performance.
Read more
Zero Point 5-Axis Self-Centering Vise 120x90x70.5mm
Precision Zero Point 5-Axis Self-Centering Vise designed for CNC workholding, 5-axis machining, EDM workholding, and repeatable fixture setups. Built from hardened chrome steel with 48–52 HRC hardness, this compact vise provides ≤0.01mm repeatability, 0–70mm clamping range, 8kN clamping power, and 65Nm max torque. Its 120x90x70.5mm body supports accurate centering, strong part holding, and improved access for precision machining applications.
Read more
Zero Point 5-Axis Self-Centering Vise 120x90x85.4mm
Precision Zero Point 5-Axis Self-Centering Vise designed for CNC workholding, 5-axis machining, EDM workholding, and repeatable fixture setups. Built from hardened chrome steel with 48–52 HRC hardness, this compact vise provides ≤0.01mm repeatability, 0–46mm clamping range, 8kN clamping power, and 65Nm max torque. Its 120x90x85.4mm body supports accurate centering, strong part holding, and stable precision machining performance.
Read more
Self Centering Vise 350x150x125mm
Precision self centering vise designed for CNC workholding, 4th and 5th axis machining, EDM workholding, and rigid fixture setups. Built from hardened chrome steel with 48–52 HRC hardness, this heavy-duty precision vise provides ±0.005mm repeatability, 220mm max clamping width, 8000N clamping power, and 50Nm max torque. Its 350x150x125mm body supports larger workpieces, strong clamping, and stable precision machining performance.
Read more
Self Centering Vise 255x127x85mm
Precision self centering vise designed for CNC workholding, 4th and 5th axis machining, EDM workholding, and rigid fixture setups. Built from hardened chrome steel with 48–52 HRC hardness, this precision vise provides ±0.005mm repeatability, 175mm max clamping width, 600N clamping power, and 40Nm max torque. Its 255x127x85mm body supports larger workpieces, accurate part centering, and stable machining performance.
Read more
Self Centering Vise 210x127x85mm
Precision self centering vise designed for 4th and 5th axis CNC machining, EDM workholding, and rigid CNC fixture setups. Built from hardened chrome steel with 48–52 HRC hardness, this precision vise provides ±0.005mm repeatability, 136mm max clamping width, 6000N clamping power, and 40Nm max torque. Its 210x127x85mm body supports strong clamping, accurate part centering, and stable machining performance for larger workpieces.
Read more
Self Centering Vise 153x127x85mm
Precision self centering vise designed for 4th and 5th axis CNC machining, EDM workholding, and rigid CNC fixture setups. Built from hardened chrome steel with 48–52 HRC hardness, this precision vise provides ±0.005mm repeatability, 79mm max clamping width, 6000N clamping power, and 40Nm max torque. Its 153x127x85mm body supports stable clamping, accurate part centering, and repeatable machining performance for small to medium workpieces.
Read more
Self Centering Vise 127x127x85mm
Precision self centering vise designed for 4th and 5th axis CNC machining, EDM workholding, and rigid CNC fixture setups. Built from hardened chrome steel with 48–52 HRC hardness, this compact precision vise provides ±0.005mm repeatability, 53mm max clamping width, 6000N clamping power, and 40Nm max torque. Its 127x127x85mm body supports strong clamping, accurate part centering, and stable precision machining performance.
Read more
Self Centering Vise 120x90x83mm, System 3R Compatible
Precision self centering vise designed for 4th and 5th axis CNC machining, EDM workholding, and palletized fixture systems. Built from hardened chrome steel with 48–52 HRC hardness, this System 3R compatible vise provides ±0.005mm repeatability, 70mm max clamping width, 4000N clamping power, and 30Nm max torque. Its 120x90x83mm body supports strong part holding, accurate centering, and repeatable precision machining setups.
Read more
Self Centering Vise 120x90x97.5mm, System 3R Compatible
Precision self centering vise designed for 4th and 5th axis CNC machining, EDM workholding, and palletized fixture systems. Built from hardened chrome steel with 48–52 HRC hardness, this System 3R compatible vise provides ±0.005mm repeatability, 46mm max clamping width, 400N clamping power, and 30Nm max torque. Its 120x90x97.5mm body supports stable clamping, accurate part centering, and repeatable precision machining setups.
Read more
Self Centering Vise 120x90x81.2mm, Erowa Compatible
Precision self centering vise designed for 4th and 5th axis CNC machining, EDM workholding, and palletized fixture systems. Built from hardened chrome steel with 48–52 HRC hardness, this Erowa compatible vise provides ±0.005mm repeatability, 70mm max clamping width, 4000N clamping power, and 30Nm max torque. Its 120x90x81.2mm body supports strong part holding, accurate centering, and repeatable precision machining setups.
Read more
Self Centering Vise 120x90x96.2mm, Erowa Compatible
Precision self centering vise designed for 4th and 5th axis CNC machining, EDM workholding, and palletized fixture systems. Built from hardened chrome steel with 48–52 HRC hardness, this Erowa compatible vise provides ±0.005mm repeatability, 46mm max clamping width, 400N clamping power, and 30Nm max torque. Its 120x90x96.2mm body supports stable clamping, accurate part centering, and repeatable precision machining setups.
Read more
Self Centering Vise 91x54x64mm, System 3R Compatible
Precision self centering vise designed for 4th and 5th axis CNC machining, EDM workholding, and compact palletized fixture systems. Built from hardened chrome steel with 48–52 HRC hardness, this System 3R compatible vise provides ±0.005mm repeatability, 62mm max clamping width, 300N clamping power, and 30Nm max torque. Its 91x54x64mm body supports stable clamping, accurate part centering, and repeatable precision machining setups.
Read more
Self Centering Vise 91x54x62.2mm, Erowa Compatible
Precision self centering vise designed for 4th and 5th axis CNC machining, EDM workholding, and compact palletized fixture systems. Built from hardened chrome steel with 48–52 HRC hardness, this Erowa compatible vise provides ±0.005mm repeatability, 62mm max clamping width, 300N clamping power, and 30Nm max torque. Its 91x54x62.2mm body supports accurate part centering, stable clamping, and repeatable small-part machining setups.
Read more
RHS OK vise M6 size
Rapid Holding Systems OK-VISE is a the wedge-operated low-profile clamping fixture. vise expand when they are tightened down, At the same point it press the workpieces against the guide and preventing their movement. Ok vises are designed specially for small space on the fastening base.OK vise are useful for cnc fixture for tooth surface, machining center expansion clamping block and on multi station parallel side fixed exquisite. clamp workpieces of any size or shape.Ok vise are available in M6, M8 and M10 sizes
$95.00
Add to cart
Mini Self centering vise System 3R 60X54mm-25mm clamping
Self-centering vise 60X54mm on System 3R 54 or 70mm macro pallet. RHS mini self-centering vise is 25mm clamping mounts directly on System 3R parts. Special holder to clamping small weight workpiece. Use a regular handle to threading the side screw to lock the workpiece and centering on the holder.
| SPECIFICATIONS | |
| Size | 60X54X52mm |
| Repeatability | within 0.005 |
| Material | High grade steel 48-52HRC |
| Max Clamping | 25mm |
| Torque | 20NM |
| Weight | 1kg |
$810.00
Add to cart

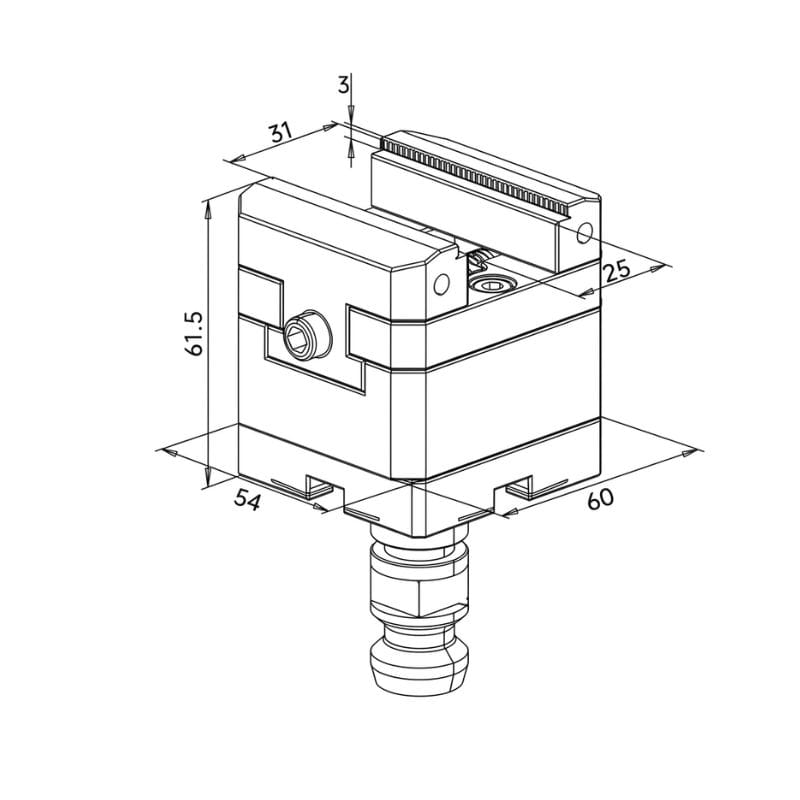

Self Centering Vise 60x54x61.5mm, System 3R Compatible
Precision self centering vise designed for 4th and 5th axis CNC machining, EDM workholding, and compact palletized fixture systems. Built from hardened chrome steel with 48–52 HRC hardness, this System 3R compatible vise provides ±0.005mm repeatability, 31mm max clamping width, and 200N clamping power. Its 60x54x61.5mm body supports accurate small-part positioning, repeatable fixture changes, and stable precision machining setups.
Read more
Self Centering Vise 60x54x60.2mm, Erowa Compatible
Precision self centering vise for 4th and 5th axis CNC machining, EDM workholding, and compact palletized fixture systems. Built from hardened chrome steel with 48–52 HRC hardness, this Erowa compatible compact vise provides ±0.005mm repeatability, 31mm max clamping width, and stable 200N clamping power. Its 60x54x60.2mm body is ideal for accurate small-part positioning, repeatable fixture changes, and precision machining workflows.
Read more
