Self Centering Vise 120x90x96.2mm, Erowa Compatible

Self Centering Vise 120x90x96.2mm, Erowa Compatible

0 out of 5

Precision self centering vise designed for 4th and 5th axis CNC machining, EDM workholding, and palletized fixture systems. Built from hardened chrome steel with 48–52 HRC hardness, this Erowa compatible vise provides ±0.005mm repeatability, 46mm max clamping width, 400N clamping power, and 30Nm max torque. Its 120x90x96.2mm body supports stable clamping, accurate part centering, and repeatable precision machining setups.

SKU: RHS-V0046-E

Ask for Quote

Save for later

Description
Additional information
FAQs
Reviews (0)

Description

This 120x90x96.2mm self centering vise is designed for precision CNC workholding applications that require strong clamping, repeatable positioning, and accurate part centering. The self-centering mechanism clamps the workpiece evenly from both sides, helping reduce setup variation and improve consistency across 4th axis and 5 axis machining operations.

Made from hardened chrome steel, the vise provides rigidity, wear resistance, and stable performance for repeated production use. Its larger 120x90mm body provides a solid platform for precision small-part and medium-part setups while maintaining controlled clamping accuracy. With ±0.005mm repeatability, 400N clamping power, and an Erowa compatible mounting interface, this vise is suitable for CNC machining, EDM workholding, electrode production, and palletized fixture systems.

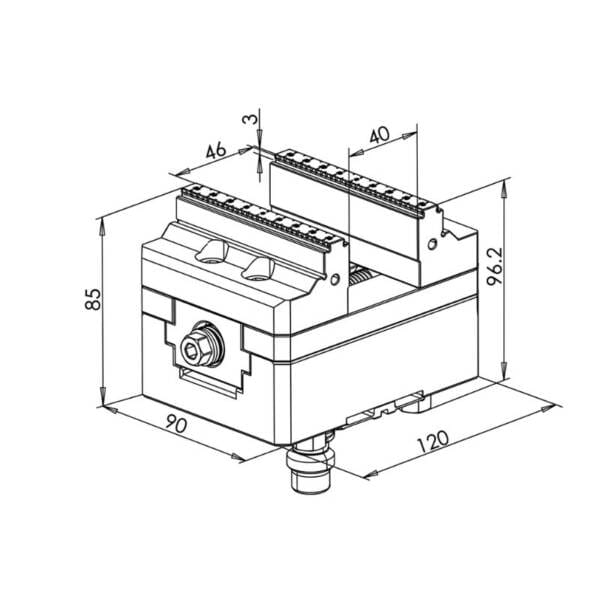

Specification	Value
Size	120x90x96.2mm
Material	Chrome Steel
Compatibility	Erowa Compatible
Hardness	48–52 HRC
Repeatability	±0.005mm
Max Clamping Width	46mm
Clamping Power	400N
Max Torque	30Nm
Net Weight	4.2kg
Overall Length	120mm
Overall Width	90mm
Overall Height	96.2mm
Jaw Opening Reference	46mm
Jaw Length Reference	40mm
Body Height Reference	85mm
Mounting Type	Erowa Compatible Pallet Interface

________________________________________

Additional information

Weight	4.2 kg
Dimensions	1.2 × 9 × 9.62 cm
Clamping Range for Vises	0-46 mm
Material for Vises	Chrome Steel
Compatibility for vises	EROWA Compatible

What is this self centering vise used for?

This self centering vise is used for precision CNC workholding, 4th axis machining, 5 axis machining, EDM workholding, and electrode production where accurate centering and repeatable part positioning are required.

Is this vise suitable for heavier precision machining setups?

Yes. The 120x90x96.2mm body, 400N clamping power, and hardened chrome steel construction provide a stable workholding platform for precision machining setups that need more rigidity than smaller compact vises.

What workholding system is this vise compatible with?

This vise is Erowa compatible and is designed for Erowa-style palletized fixture systems commonly used in CNC machining, EDM workholding, automation-ready setups, and repeatable production workflows.
