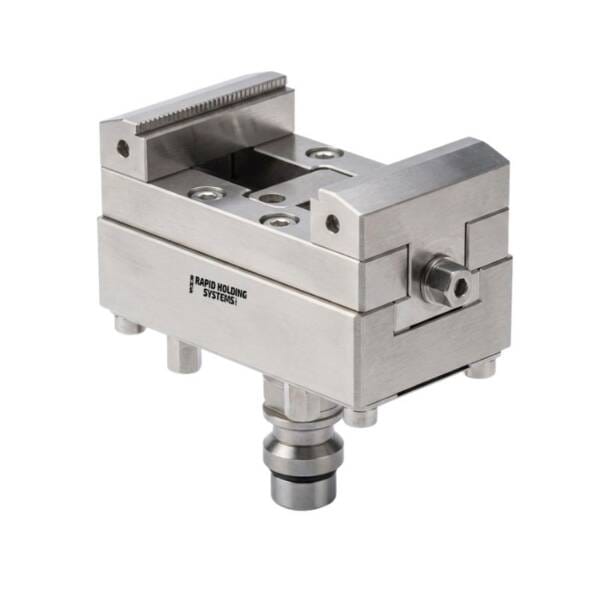

Self Centering Vise 91x54x62.2mm, Erowa Compatible

Self Centering Vise 91x54x62.2mm, Erowa Compatible

0 out of 5

Precision self centering vise designed for 4th and 5th axis CNC machining, EDM workholding, and compact palletized fixture systems. Built from hardened chrome steel with 48–52 HRC hardness, this Erowa compatible vise provides ±0.005mm repeatability, 62mm max clamping width, 300N clamping power, and 30Nm max torque. Its 91x54x62.2mm body supports accurate part centering, stable clamping, and repeatable small-part machining setups.

SKU: RHS-V0062-E

Ask for Quote

Save for later

Description
Additional information
FAQs
Reviews (0)

Description

This 91x54x62.2mm self centering vise is designed for precision CNC workholding applications that require accurate centering, compact fixturing, and stable part clamping. The self-centering mechanism helps locate the workpiece evenly from both sides, reducing setup variation and improving consistency across 4th axis and 5 axis machining operations.

Made from hardened chrome steel, the vise provides strong wear resistance, rigidity, and dependable performance during repeated clamping cycles. Its extended 91mm body and 62mm max clamping width make it suitable for larger small-part setups while still maintaining a compact footprint. With ±0.005mm repeatability, 300N clamping power, and an Erowa compatible mounting interface, this vise is well suited for CNC machining, electrode production, EDM workholding, and automation-ready fixture systems.

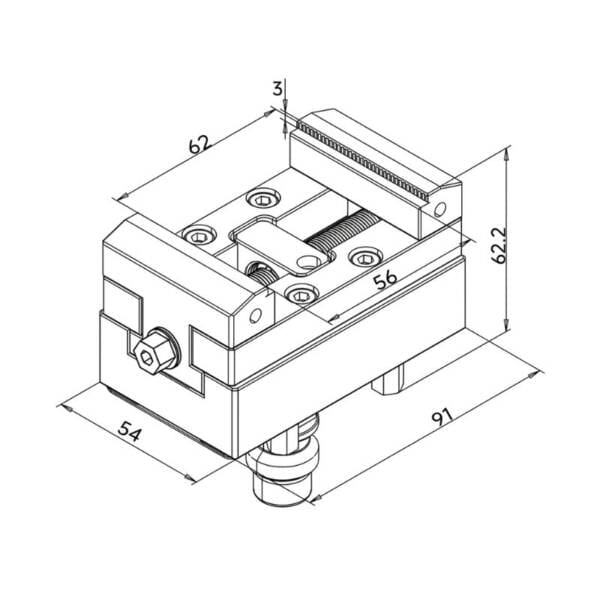

Specification	Value
Size	91x54x62.2mm
Material	Chrome Steel
Compatibility	Erowa Compatible
Hardness	48–52 HRC
Repeatability	±0.005mm
Max Clamping Width	62mm
Clamping Power	300N
Max Torque	30Nm
Net Weight	1.52kg
Overall Length	91mm
Overall Width	54mm
Overall Height	62.2mm
Jaw Opening Reference	62mm
Jaw Length Reference	56mm
Mounting Type	Erowa Compatible Pallet Interface

________________________________________

Additional information

Weight	1.52 kg
Dimensions	9.1 × 5.4 × 6.22 cm
Clamping Range for Vises	0-62 mm
Material for Vises	Chrome Steel
Compatibility for vises	EROWA Compatible

What is this self centering vise used for?

This self centering vise is used for precision CNC workholding, 4th axis machining, 5 axis machining, electrode production, and EDM applications where accurate part centering and repeatable positioning are required.

Is this vise suitable for larger small-part setups?

Yes. The 91x54x62.2mm body and 62mm max clamping width provide more holding capacity than smaller compact vises while still supporting tool clearance, fixture repeatability, and stable CNC machining performance.

What workholding system is this vise compatible with?

This vise is Erowa compatible and is designed for use with Erowa-style palletized fixture systems commonly used in CNC machining, EDM workholding, precision fixture systems, and automation-ready production setups.
