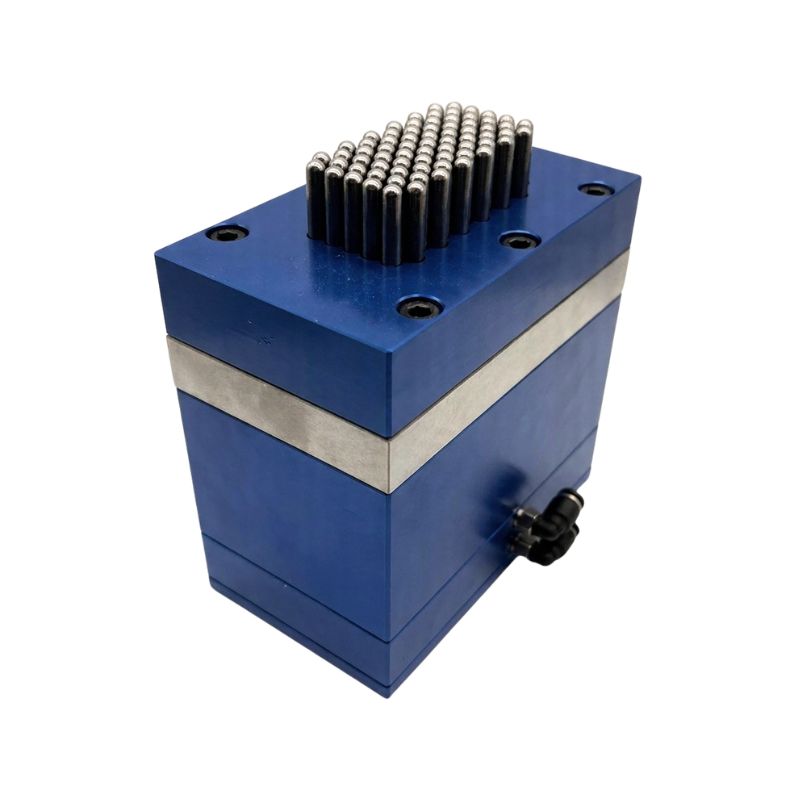

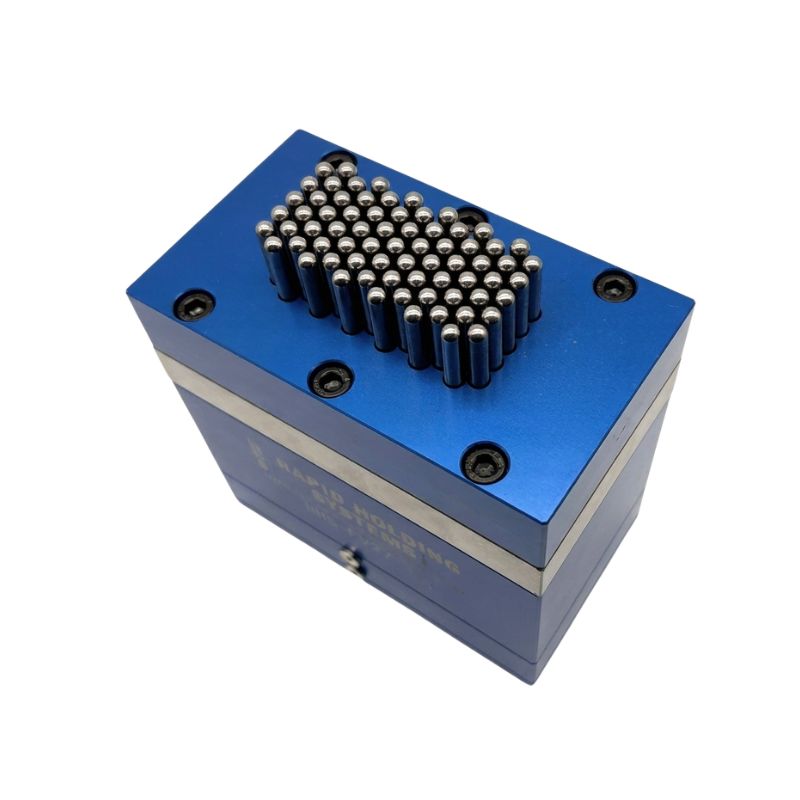

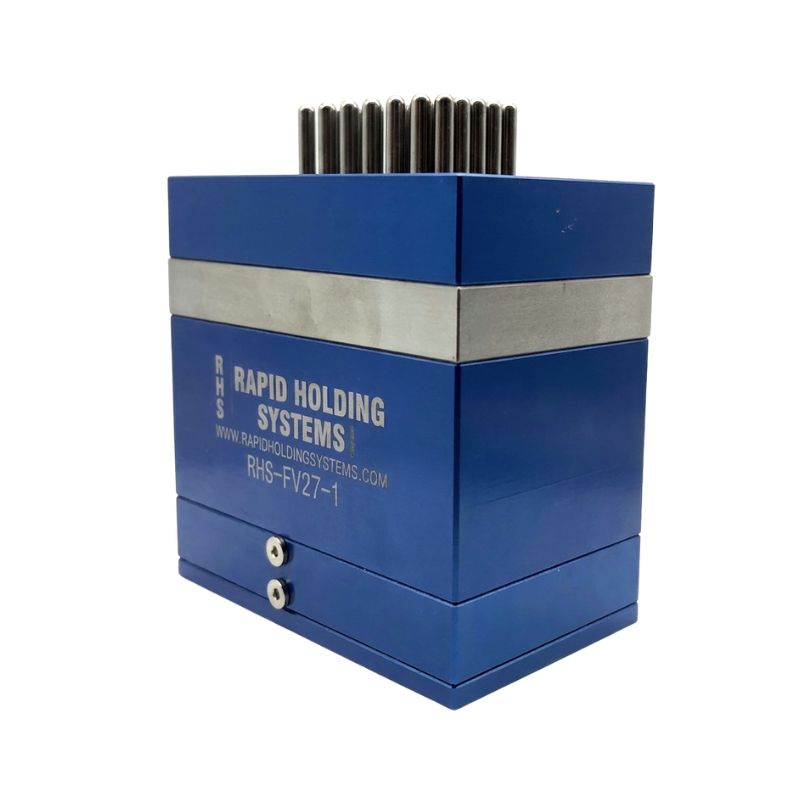

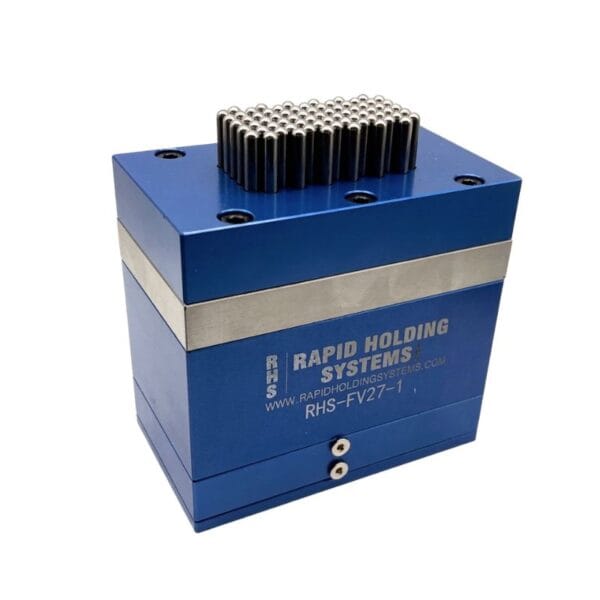

RHS Pneumatic Flexible Fixture 140x75mm

$2,695.00

RHS Pneumatic Flexible Fixture 140x75mm

Pneumatic Flexible Fixture 140x75mm is a module for flexible clamping system is pneumatic model. This module applies to testing and measuring requirements. The pins, which cradle the workpiece, are made of stainless steel, and the modules are made of aluminum alloy. The molded jaws are formed within seconds by the workpiece itself and locked in position pneumatically.

Contact Us for CAD Model.

Get Quote
SKU: RHS-FV27-1 Categories: , Tags: ,

RHS Pneumatic Flexible Fixture 140x75mm

Pneumatic Flexible Fixture 140x75mm is a module for flexible clamping system is pneumatic model. This module applies to testing and measuring requirements. The pins, which cradle the workpiece, are made of stainless steel, and the modules are made of aluminum alloy. The molded jaws are formed within seconds by the workpiece itself and locked in position pneumatically.

Contact Us for CAD Model

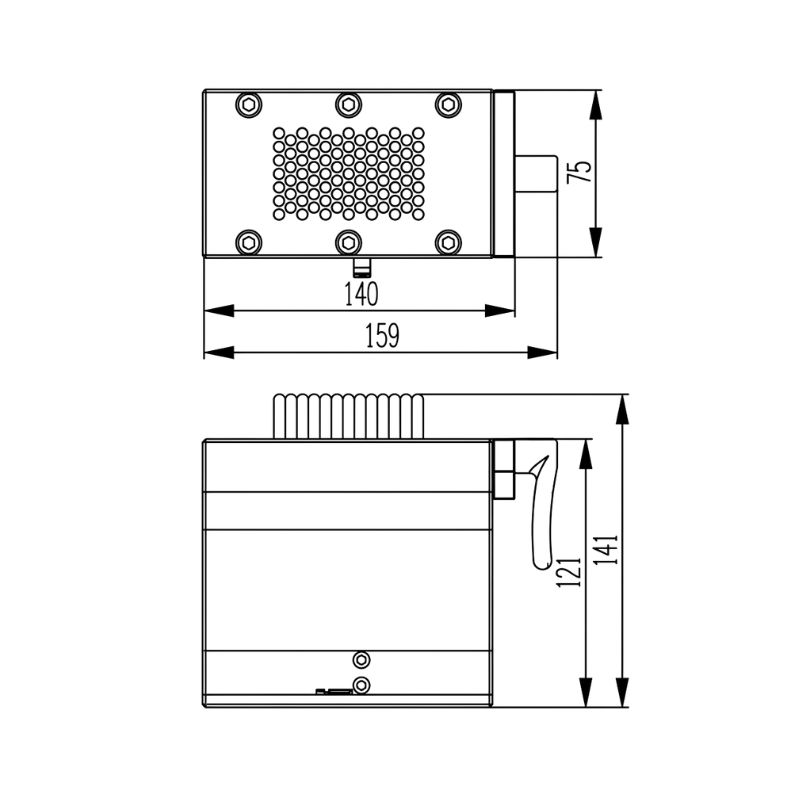

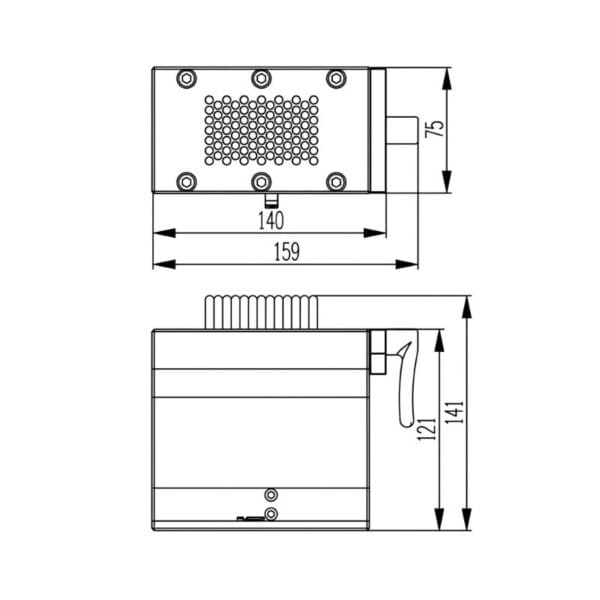

Size 140x75X141mm
Material High quality steel
Material 48-52HRC
The diameter pins 5mm
Pins quantity 85p
Stroke 20mm
Max loading weight 150kg
Pressure 6kg
Net weight 6kg

Additional information

Weight 6 kg
