RHS Flexible Clamping Tooling Fixture 115X75X122mm

$1,945.00

RHS Flexible Clamping Tooling Fixture 115X75X122mm

RHS Flexible Clamping Tooling Fixture 115X75X122mm. Pins are grouped together to compose the gripping part of the fixture. The pin gripping function allows for the secure and damage-free gripping of complex or otherwise irregular-shaped workpieces. This system is the ideal solution for manufacturers of complex components.

Contact Us for CAD Model.

Share

SKU: RHS-FV11 Categories: , Tags: ,

RHS Flexible Clamping Tooling Fixture 115X75X122mm

RHS Flexible Clamping Tooling Fixture 115X75X122mm. Pins are grouped together to compose the gripping part of the fixture. The pin gripping function allows for the secure and damage-free gripping of complex or otherwise irregular shaped workpieces. This system is the ideal solution for manufacturers of complex components.

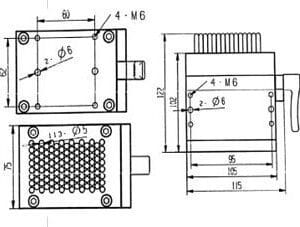

Size 115x75X122mm
Material High-quality steel
Material 48-52HRC
The diameter pins 5mm
Pins quantity 113p
Stroke 20mm
Max loading weight 250kg
Max locking force 30nm
Net weight 3.5kg

Additional information

Weight 4 kg
