RHS Flexible Tooling Self Centering Vise

RHS Self Centering Vise for Flexible Tooling and irregular shapes is a centering vice composed of 2 pcs of flexible tooling fixtures. The pins on fixtures are flexible and able to simulate the figure of a complex workpiece easily when clamping it. The application of this centering vise is for CNC machining, measurement in the laboratory, and assembly. The air connection on the lateral side is a function for keeping fixtures from swarfs after machining.

Share

SKU: RHS-FV99 Categories: , Tag:

RHS Flexible Tooling Self Centering Vise

RHS Self Centering Vise for Flexible Tooling and irregular shapes is a centering vice composed of 2 pcs of flexible tooling fixtures. The pins on fixtures are flexible and able to simulate the figure of a complex workpiece easily when clamping it. The application of this centering vise is for CNC machining, measurement in the laboratory, and assembly. The air connection on the lateral side is a function for keeping fixtures from swarfs after machining.

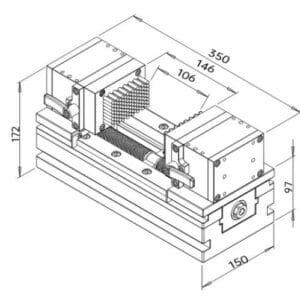

Size350x150X162mm
MaterialHigh-quality steel
Material48-52HRC
The diameter pins5mm
Pins quantity226p
Stroke of cylinder180mm
Max loading weight250kg
Pressure6kg
Net weight35kg

Additional information

Weight35 kg

1 review for RHS Flexible Tooling Self Centering Vise

  1. Nick H.

    This product did what is was supposed to do. Thanks Ralph and RHS, great customer service.
