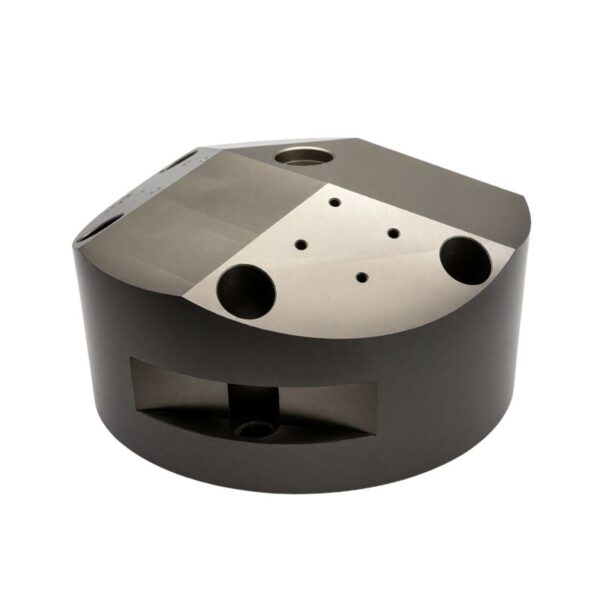

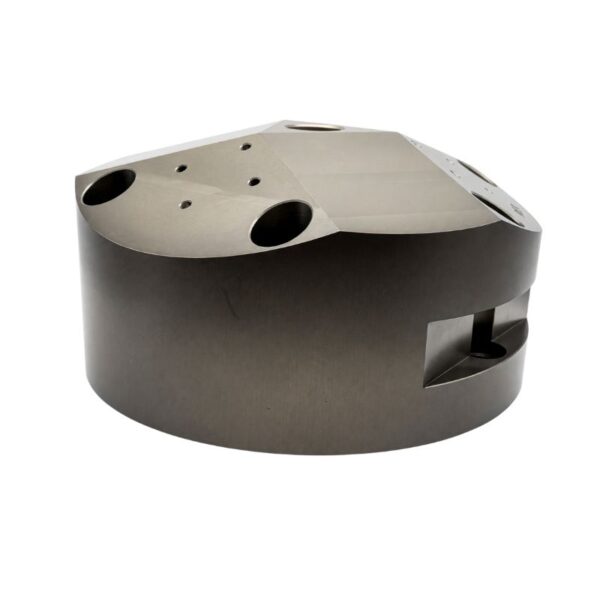

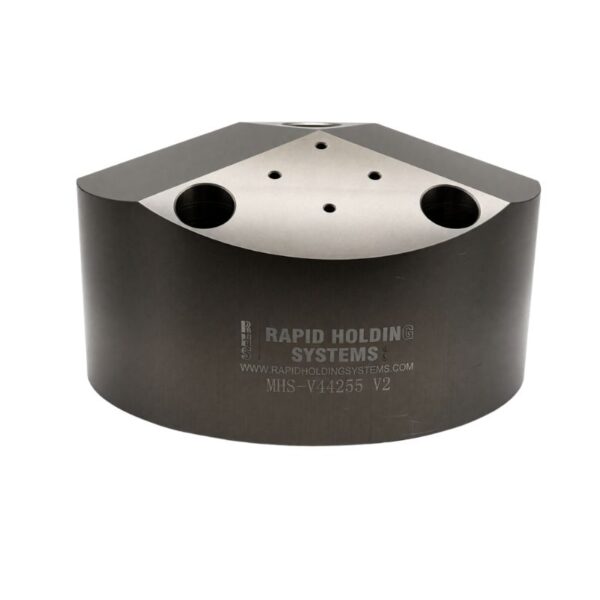

RHS 3-Sided Pyramid Tombstone Base for D49 Dovetail Collet
$1,275.00
The RHS-V44255-V2 3-Sided Pyramid Tombstone Base is a precision workholding fixture designed for mounting D49 dovetail collet holders in CNC machining applications. Manufactured from anodized aluminum, its three-sided pyramid configuration provides multiple mounting faces for flexible workpiece positioning and efficient machining setups. Compatible with the RHS-DV8599 D49 ? 30 mm Dovetail Collet, featuring a 15 mm dovetail width. D49 collet holders are sold separately. CAD files are available upon request.
- Description
- Additional information
- FAQs
- Reviews (0)
Description
RHS 3-Sided Pyramid Tombstone Base for D49 Dovetail Collet Holders ? RHS-V44255-V2
The RHS-V44255-V2 is a customized 3-sided pyramid tombstone workholding base designed for mounting D49 dovetail collet holders in CNC machining and precision workholding applications.
Its three-sided pyramid design provides multiple mounting faces, allowing compatible dovetail collet holders to be positioned around a single fixture. This configuration is suitable for machining setups requiring multiple workholding positions and improved accessibility to workpieces.
Manufactured from aluminum with an anodized surface finish, the RHS-V44255-V2 offers a lightweight and durable fixture solution for precision machining environments.
The pyramid tombstone is designed to accommodate the RHS-DV8599 Dovetail Collet D49 ? 30 mm, featuring a 15 mm dovetail width. The compatible collet holders can be mounted onto the pyramid base to create a customized multi-position workholding system.
Please note: The RHS-V44255-V2 includes the pyramid tombstone base only. D49 dovetail collet holders are sold separately and can be ordered under part number RHS-DV8599.
CAD files are available upon request for both the RHS-V44255-V2 pyramid tombstone and RHS-DV8599 dovetail collet to assist with fixture design, machine integration, and setup planning.
Technical Specifications
Specification Value
RHS Part Number RHS-V44255-V2
Product Type 3-Sided Pyramid Tombstone Base
Material Aluminum
Surface Finish Anodized
Fixture Configuration 3-Sided Pyramid
Number of Mounting Faces 3
Compatible Collet Type D49 Dovetail Collet Holder
Compatible RHS Collet RHS-DV8599
Compatible Collet Size D49 ? 30 mm
Dovetail Width 15 mm (compatible collet)
Collets Included No ? Sold Separately
CAD Files Available Upon Request
Application CNC Machining / Multi-Position Workholding / Precision Fixturing
Additional information
| Weight | 4 kg |
|---|---|
| Dimensions | 7 × 7 × 7 cm |
What is the RHS-V44255-V2 3-Sided Pyramid Tombstone used for?
The RHS-V44255-V2 is designed for mounting multiple D49 dovetail collet holders onto a three-sided pyramid fixture. It provides multiple workholding faces for CNC machining applications, allowing customized multi-position setups.
Are the D49 dovetail collet holders included with the RHS-V44255-V2 pyramid tombstone?
No. The RHS-V44255-V2 is supplied as the pyramid tombstone base only. The compatible RHS-DV8599 D49 ? 30 mm Dovetail Collet, featuring a 15 mm dovetail width, must be purchased separately.
Are CAD drawings available for the RHS-V44255-V2 and compatible D49 dovetail collets?
Yes. CAD files are available upon request for both the RHS-V44255-V2 3-Sided Pyramid Tombstone Base and the compatible RHS-DV8599 D49 Dovetail Collet Holder. These files can assist with machine integration, fixture design, and machining setup planning
