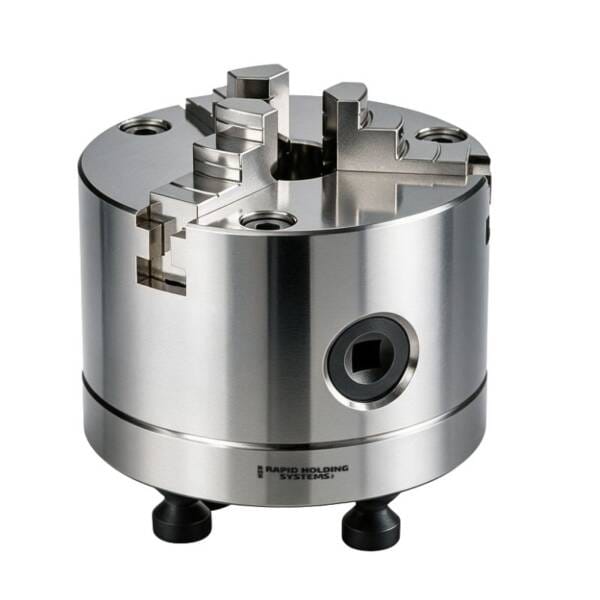

Lathe Three-Jaw Chuck Ø112x98mm, with Bottom Zero Point Bolt

Lathe Three-Jaw Chuck Ø112x98mm, with Bottom Zero Point Bolt

0 out of 5

Precision lathe three-jaw chuck designed for secure workpiece holding during turning, drilling, cutting, and CNC lathe machining. Built from chrome steel with 32–52 HRC hardness, this chuck provides ±0.01mm repeatability for stable and centered workholding. Its Ø112x98mm body and bottom zero point bolt interface support repeatable mounting, accurate part positioning, and reliable clamping performance for precision lathe and machining applications.

SKU: RHS-ZP520017

Ask for Quote

Save for later

Description
Additional information
Reviews (0)

Description

This Ø112x98mm Lathe Three-Jaw Chuck is designed for precision workholding applications where the workpiece must remain centered, stable, and securely clamped during rotation. The three-jaw design helps hold round or cylindrical parts evenly, making it suitable for turning, drilling, cutting, facing, and other lathe machining operations.

Made from chrome steel, the chuck provides durability, rigidity, and stable performance for repeated use in CNC lathe and precision machining environments. With ±0.01mm repeatability, it helps maintain consistent positioning across setup changes and production runs. The bottom zero point bolt interface supports repeatable mounting into compatible fixture systems, helping reduce setup time while maintaining secure workholding alignment for accurate machining results.

Specification	Value
Size	Ø112x98mm
Material	Chrome Steel
Product Type	Lathe Three-Jaw Chuck
Mounting Interface	Bottom Zero Point Bolt
Hardness	32–52 HRC
Repeatability	±0.01mm
Net Weight	5.1kg

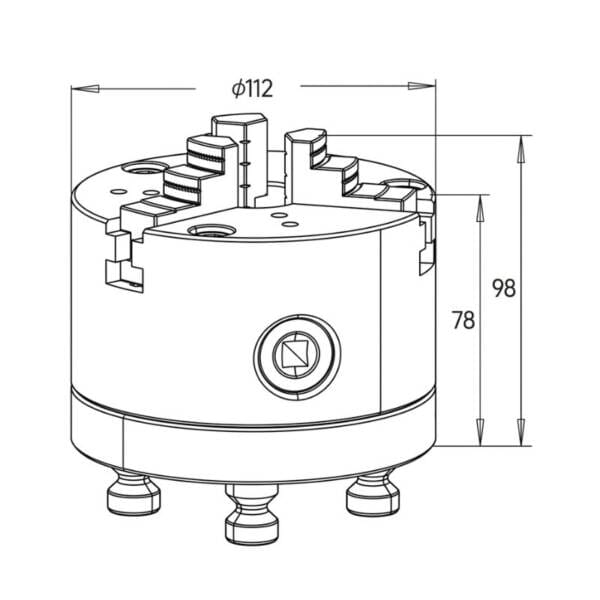

Chuck Diameter	Ø112mm
Overall Height	98mm
Body Height Reference	78mm
Chuck Type	Three-Jaw Lathe Chuck
Mounting Type	Zero Point Bolt Mounting from Bottom
