SYSTEM 3R 3R-605.1E Drawbar Macro Compatible

Description

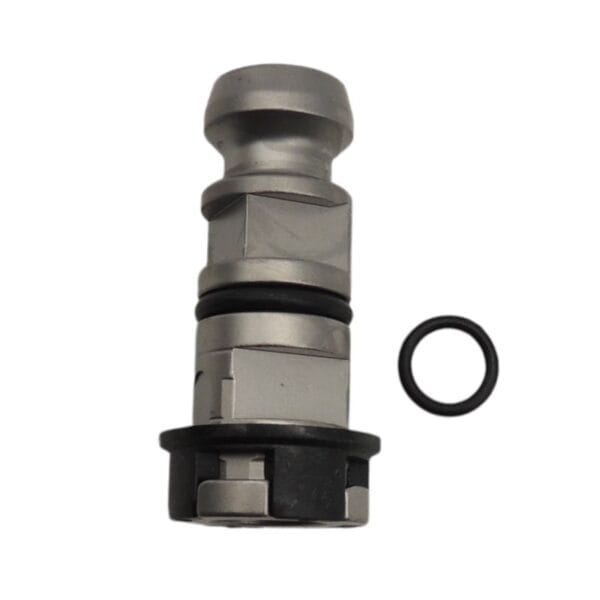

The RHS-3R-605.1E Macro Drawbar is a pneumatic workholding component engineered for secure tool and pallet retention in precision machining environments. Designed as the RHS compatible version of System 3 R® 3 R-605.1 E, this drawbar integrates into System 3 R Macro Standard workholding systems to facilitate consistent clamping and location during manufacturing operations.

To support demanding machining processes, the RHS-3R-605.1E incorporates integrated flushing capability. This internal flushing channel allows dielectric fluid or coolant to pass through the drawbar during operation, aiding in efficient chip removal, debris clearance, and thermal stabilization across wire EDM, sinker EDM, and CNC milling applications.

Utilizing pneumatic actuation, the drawbar enables fast and repeatable clamping cycles within compatible pneumatic chucks and receivers. Its standardized Macro interface ensures consistent performance when securing pallets, holders, and fixtures across automated or manual precision production setups.

Key Features

• OEM Compatibility: Designed for compatibility with System 3 R® 3 R-605.1 E workholding setups.
• System Application: Fully compatible with System 3 R Macro Standard chucks and tooling interfaces.
• Product Type: Precision pneumatic drawbar for workholding and palletizing systems.
• Actuation Method: Powered by pneumatic actuation for consistent clamping operation.
• Integrated Flushing: Built-in flushing capability supports dielectric fluid and coolant flow.
• Primary Application: Engineered for precision EDM and CNC machining operations.

Technical Specifications
