RHS 95×65 CNC Flexible tool

$1,745.00

RHS Flexible Clamping Vise 95x65x122mm

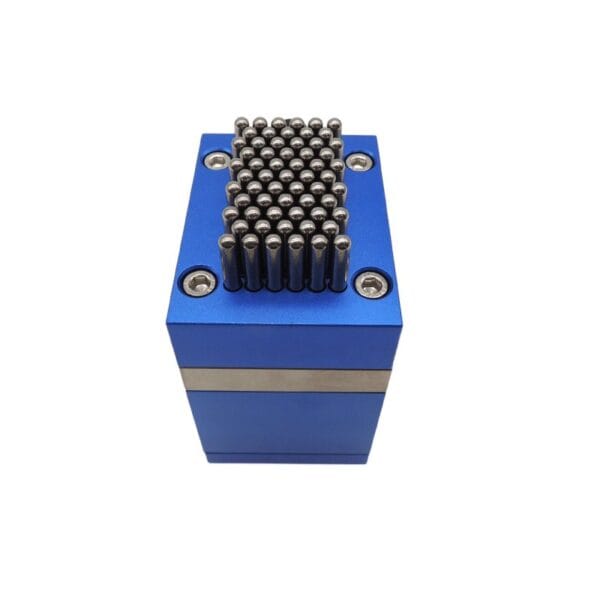

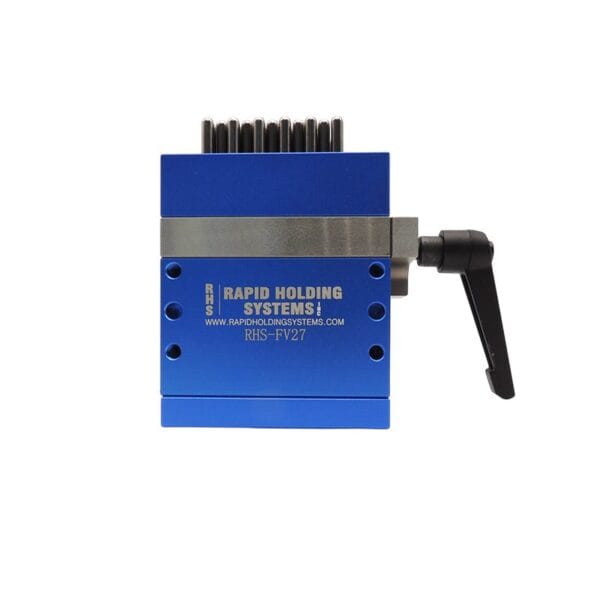

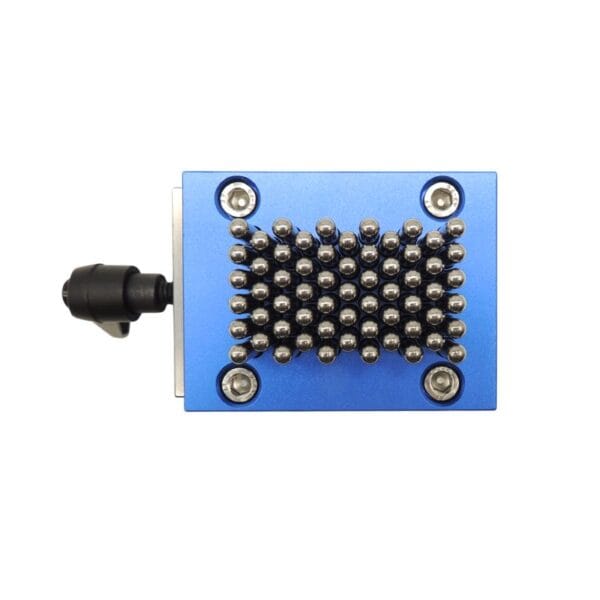

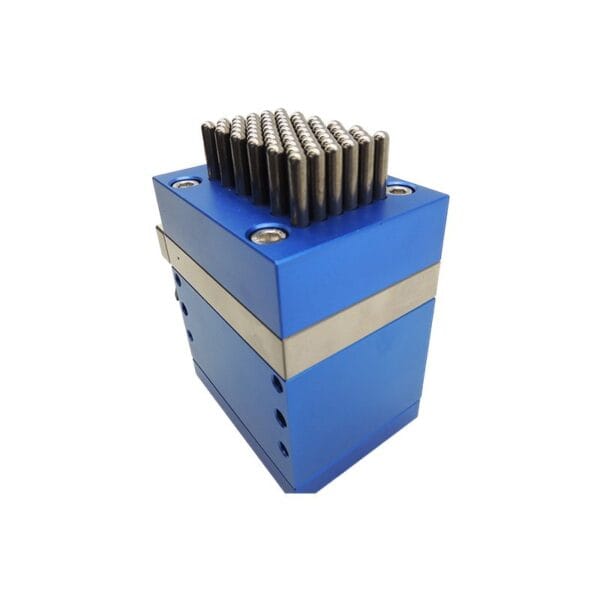

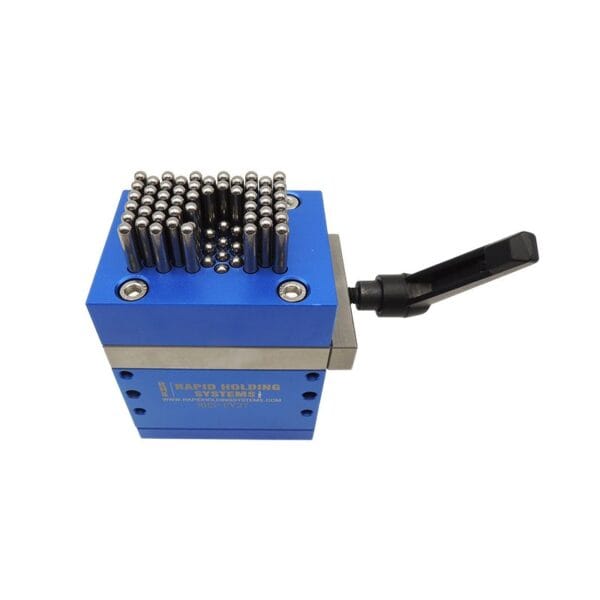

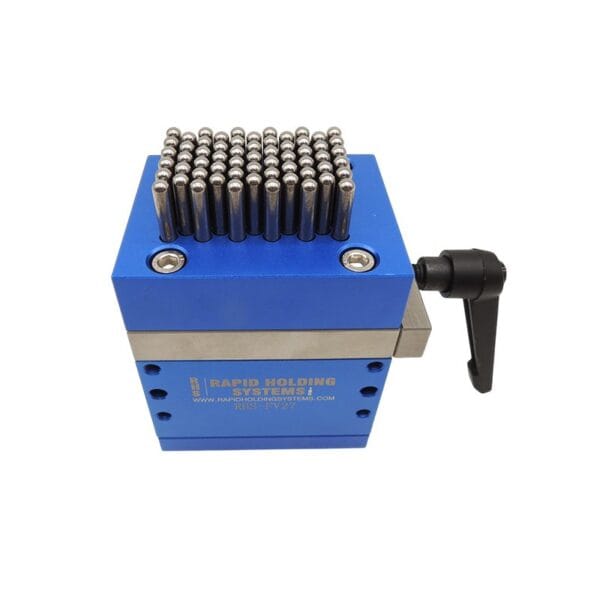

Flexible tooling fixture 95x65x122mm is a module for flexible clamping system. This module applies to testing and measuring requirements. The pins, which cradle the workpiece, are made of stainless steel, and the modules are made of aluminum alloy. The molded jaws are formed within seconds by the workpiece itself and locked in position with a single movement of a lever.

Contact us for CAD model.

Get Quote
SKU: RHS-FV27 Categories: , Tags: ,

RHS Flexible Clamping Vise 95x65x122

Flexible tooling fixture 95x65x122mm is a module for flexible clamping system. This module applies to testing and measuring requirements. The pins, which cradle the workpiece, are made of stainless steel, and the modules are made of aluminum alloy. The molded jaws are formed within seconds by the workpiece itself and locked in position with a single movement of a lever.

95×65 CNC Flexible tool
Size 95x65X122mm
Material High quality steel
Material 48-52HRC
The diameter pins 5mm
Pins quanity 60p
Stroke 20mm
Max loading weight 120kg
Max locking force 20nm
Net weight 2.3kg



Additional information

Weight 3 kg
