RHS Adjustable WEDM Workpiece Holder, 100 mm Clamping Range

Description

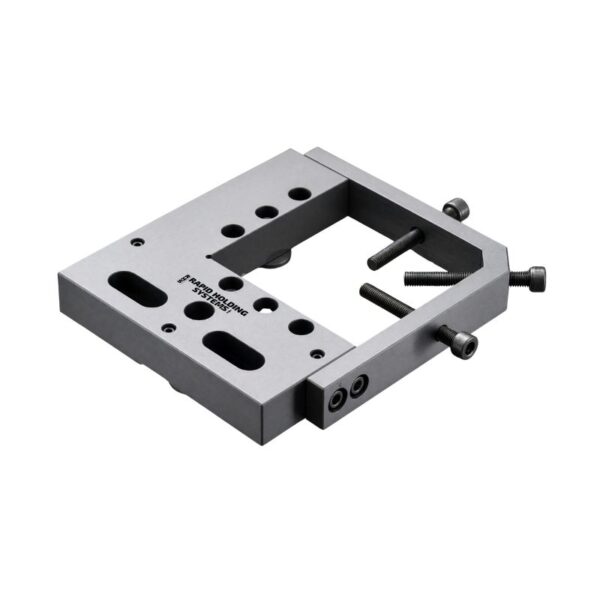

The RHS-WA105 is a precision adjustable workpiece holder designed for Wire EDM (WEDM) machining applications. Its adjustable clamping arrangement allows workpieces within a 50?100 mm clamping range to be securely positioned for EDM operations.

The holder is manufactured from martensitic stainless steel and undergoes heat treatment, vacuum quenching, and cold processing to achieve a hardness of HRC 50?55. This construction provides the rigidity, wear resistance, and durability required for precision workholding applications.

The adjustable clamping screws provide flexibility for positioning and securing different workpiece geometries. The fixture is particularly suited for holding components that have already undergone milling and grinding operations and require subsequent Wire EDM machining.

With a slim 25 mm body thickness and an approximately 105 mm internal working opening, the RHS-WA105 provides workpiece access while maintaining a rigid supporting structure.

Key Features
Adjustable workpiece holder for Wire EDM applications
50?100 mm clamping range
Manufactured from martensitic stainless steel
Heat treated and vacuum quenched
Cold processed for dimensional stability
Hardness: HRC 50?55
Multiple adjustable clamping points
Slim 25 mm fixture thickness
Designed for precision WEDM workholding
Suitable for previously milled and ground workpieces
Robust construction for repeatable shop-floor use
Technical Specifications
Specification Value
RHS Part Number RHS-WA105
Product Type Adjustable WEDM Workpiece Holder
Application Wire EDM / WEDM Workholding
Material Martensitic Stainless Steel
Heat Treatment Vacuum Quenched / Cold Processed
Hardness HRC 50?55
Clamping Range 50?100 mm

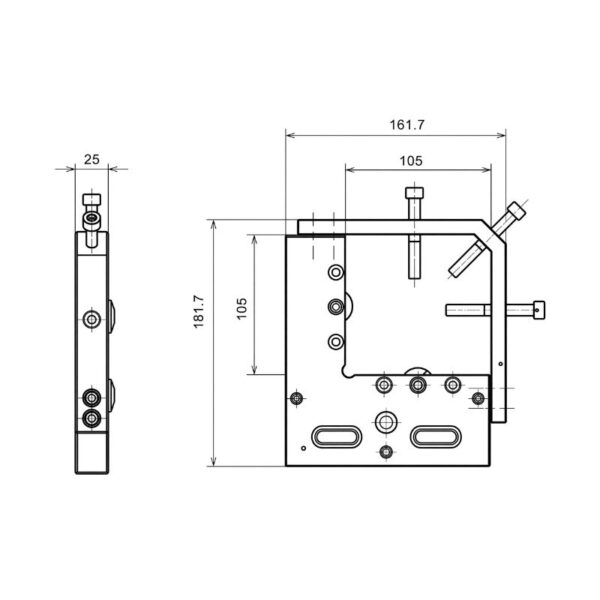

Internal Opening / Working Height 105 mm
Overall Height Approx. 181.7 mm
Overall Width Approx. 161.7 mm
Body Thickness 25 mm
Weight Approx. 2 kg (4.41 lb)
Recommended Workpiece Type Milled and Ground Workpieces
Machining Process Wire EDM
