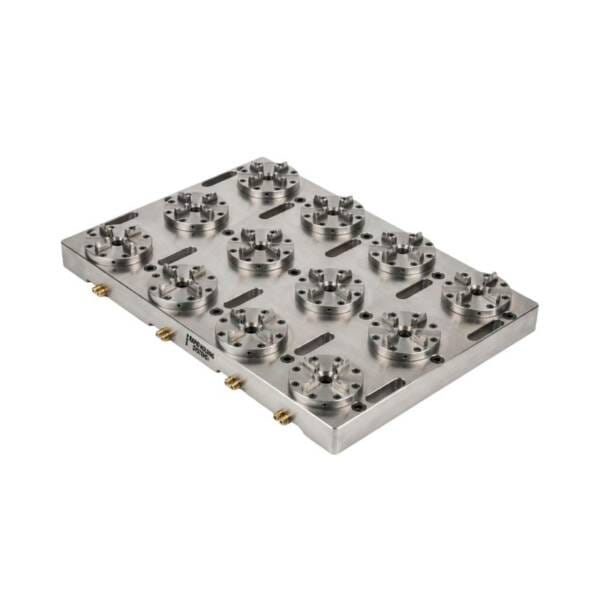

Erowa ER-035519 Compatible 12-in-1 Optimized Pneumatic Chuck with CNC Base Plate 600x410x62.5mm

Erowa ER-035519 Compatible 12-in-1 Optimized Pneumatic Chuck with CNC Base Plate 600x410x62.5mm

0 out of 5

Precision Erowa ER-035519 compatible 12-in-1 Optimized Pneumatic Chuck with CNC base plate designed for high-volume CNC workholding, EDM workholding, electrode production, and automation-ready machining. Built from chrome steel with 32–60 HRC hardness, this multi-station pneumatic chuck provides 8000N + 8000N clamping power, 0.002mm repeatability, and 6 bar operating pressure with air cleaning function. Its 600x410x62.5mm layout allows 12 chucks to be controlled by four air lines for efficient multi-part machining.

SKU: RHS-E35519-12

Ask for Quote

Save for later

Description
Additional information
Reviews (0)

Description

This 600x410x62.5mm Erowa ER-035519 compatible 12-in-1 Optimized Pneumatic Chuck with CNC base plate is designed for precision machining environments that require maximum workholding capacity, fast pneumatic clamping, and consistent repeatability. The 12-station layout allows multiple electrodes, holders, or workpieces to be mounted on one base plate, helping increase machine utilization and reduce setup changes in CNC machining, EDM workholding, and automated production workflows.

Made from chrome steel, the base plate provides rigidity, wear resistance, and stable long-term performance during repeated clamping cycles. The pneumatic system operates at 6 bar and includes an air cleaning function to help keep the clamping interface clear. With 0.002mm repeatability and 8000N + 8000N clamping power, this optimized pneumatic chuck supports accurate positioning, reliable holding force, and faster fixture changeover for shops looking to improve productivity without sacrificing precision.

Specification	Value
Size	600x410x62.5mm
Material	Chrome Steel
Product Type	12-in-1 Optimized Pneumatic Chuck with CNC Base Plate
Compatibility	Erowa ER-035519 Compatible
Hardness	32–60 HRC
Actuation Pressure	6 bar with air cleaning function
Air Control	12 chucks controlled by 4 air lines
Clamping Power	8000N + 8000N
Repeatability	0.002mm
Net Weight	69.12kg
Overall Length	600mm
Overall Width	410mm
Overall Height	62.5mm
Chuck Diameter Reference	Ø100mm
Station Layout	12-station optimized pneumatic chuck layout
Station Spacing Reference	150mm, 300mm, and 450mm spacing shown
Base Reference Width	410mm shown
Base Reference Length	600mm shown
Height Reference	39mm and 49mm references shown
Mounting Type	Multi-Station Pneumatic Chuck CNC Base Plate
