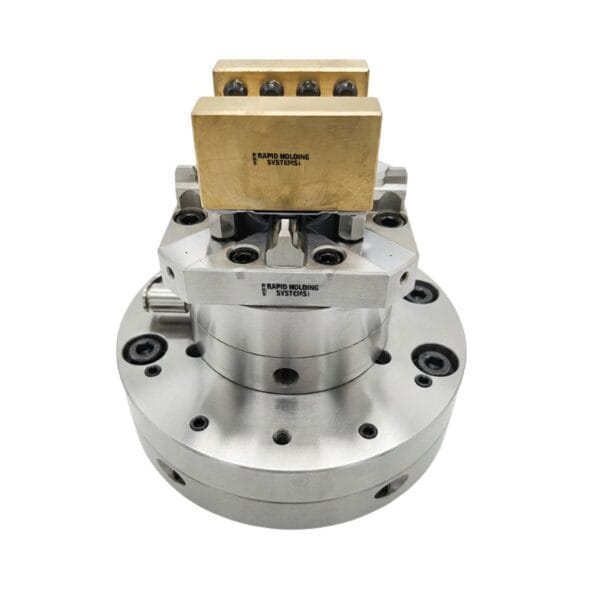

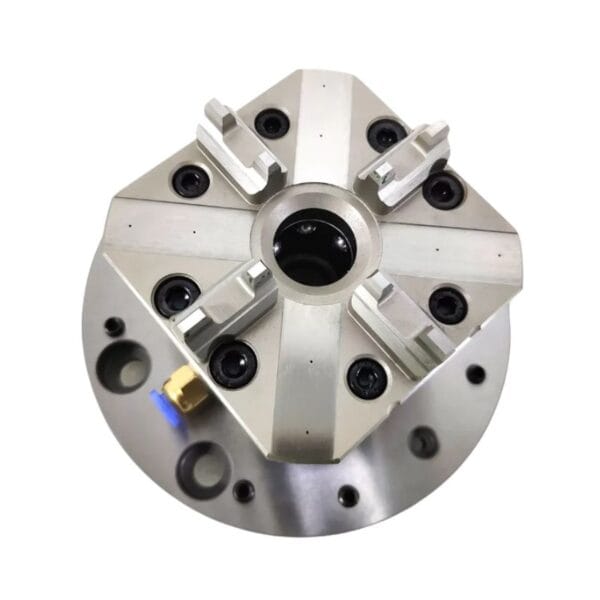

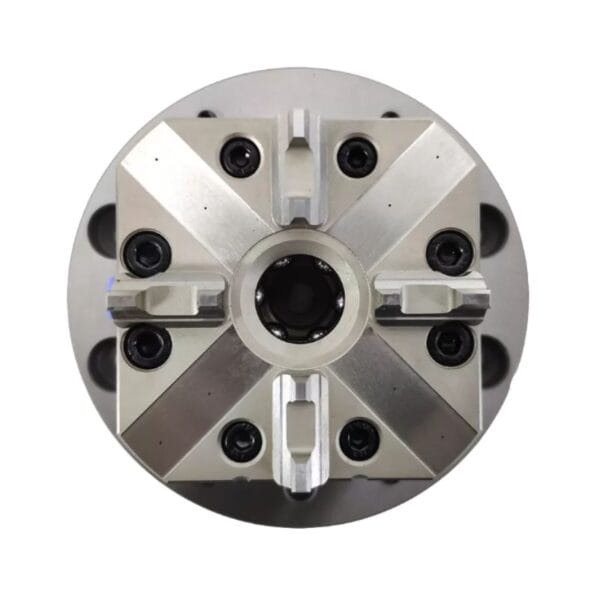

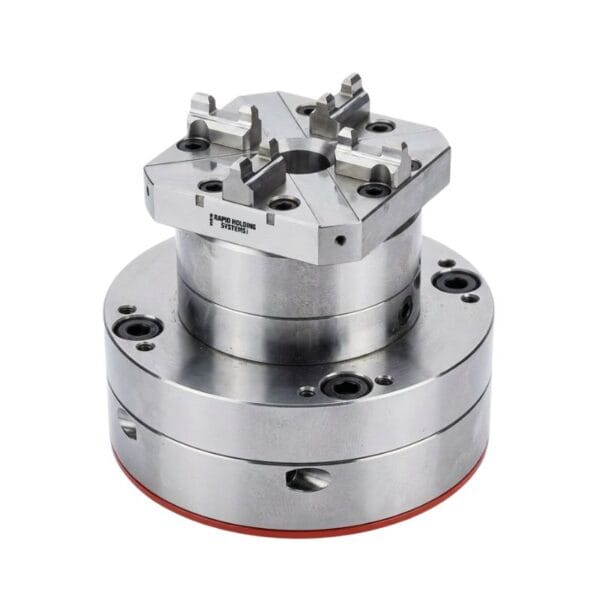

Erowa ER-007521 ER-007580 compatible 80mm Pneumatic Rapid action EDM Chuck

$1,050.00

Erowa ER-007580 80mm Pneumatic Rapid action EDM Chuck. RHS 80mm EDM Pneumatic Chuck corresponds to ER-007580. It is equivalent to Rapid-action Chuck Automatic ER-007521 or Manual rapid-action chuck ER-007580.

Share

Erowa ER-007580 80mm Pneumatic Rapid action EDM Chuck. RHS 80mm EDM Pneumatic Chuck corresponds to ER-007580. It is equivalent to Rapid-action Chuck Automatic ER-007521 or Manual rapid-action chuck ER-007580. It applies to retrofit on EDM sinking machines, working with electrode holders. It is made of 440C stainless steel, well rust-resistant. Air pressure required 6 bar with self-cleaning function. Clamping force up to 60000N.

SPECIFICATION

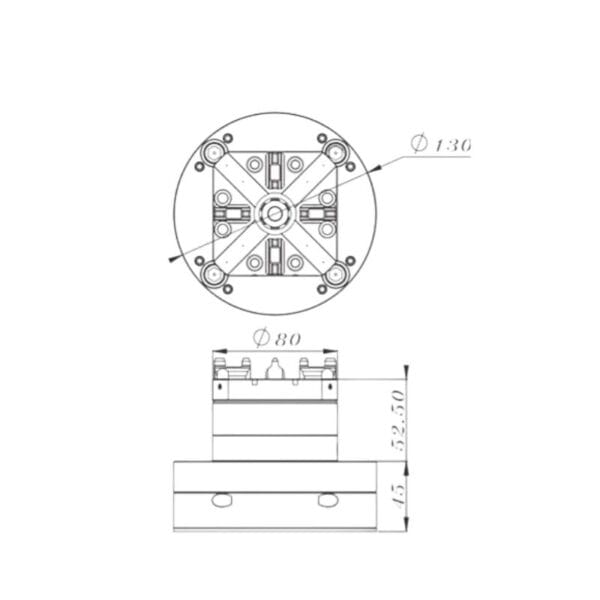

SIZE Φ 130X97.5mm
MATERIAL NIPPON STAINLESS STEEL 57-60HRC
AIR PRESSURE REQUIRE 6 BAR , WITH AIR CLEANING FUNCTION
FORCE POWER 6000N

Additional information

Weight 2 kg
