Erowa ER-033600 compatible MTS Centering Plate P
$190.00
RHS-E033600 MTS Centering Plate P is a precision centering interface designed for use with Erowa? MTS workholding systems and is compatible with ER-033600. Designed for heavy-duty workholding applications, it supports workpieces up to 1,000 kg and provides accurate positioning between the workpiece, pallet, and MTS chuck.
- Description
- Additional information
- FAQs
- Reviews (0)
Description
Erowa ER-033600 compatible MTS Centering Plate P ? RHS-E033600

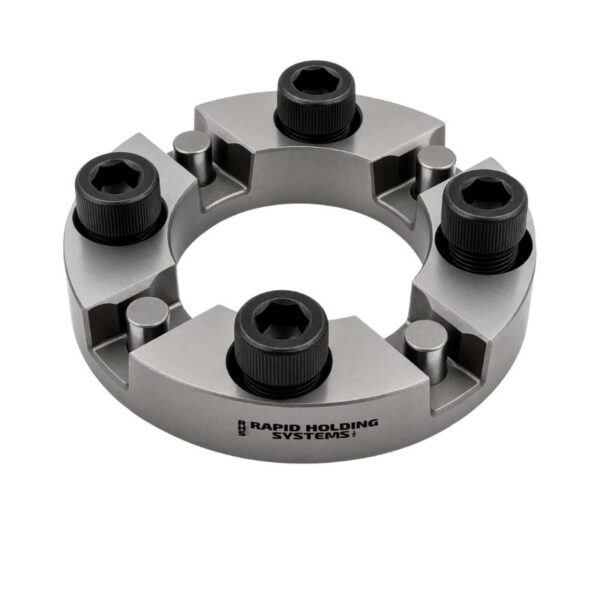

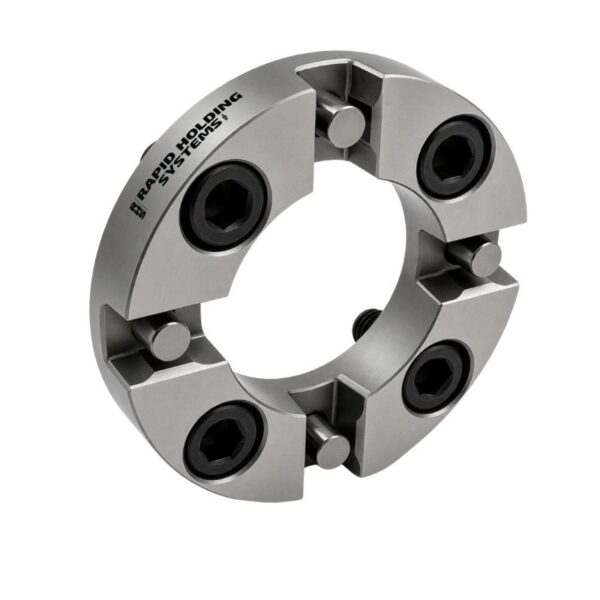

The RHS-E033600 MTS Centering Plate P is a precision workholding component designed for integration with Erowa MTS standard clamping systems. It provides the centering and positioning interface required to locate large pallets, fixtures, and workpieces accurately on compatible MTS chucks.
Designed as an RHS alternative compatible with Erowa? ER-033600, the centering plate is suitable for demanding machining environments where large and heavy workpieces require accurate, repeatable positioning.
The plate supports workpiece weights of up to 1,000 kg and workpiece dimensions up to 1,000 ? 1,000 ? 1,000 mm, making it suitable for large-part machining, mold and die manufacturing, and other heavy-duty precision machining applications.

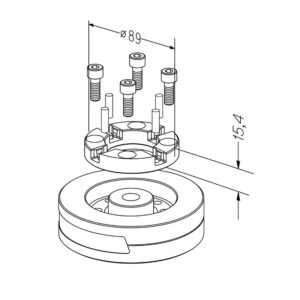

The centering plate has an approximately ?89 mm mounting pattern and 15.4 mm height, providing a compact interface that can be integrated into pallets and fixtures.
Important: The RHS-E033600 is intended for MTS standard components and is not designed for MTS FD components.
Key Features
Compatible with Erowa? ER-033600
Precision MTS centering and positioning interface
Designed for Erowa MTS standard workholding systems
Supports workpieces up to 1,000 kg
Suitable for workpieces up to 1,000 ? 1,000 ? 1,000 mm
Compact 15.4 mm profile
Approx. ?89 mm mounting pattern
Suitable for large pallets, fixtures, molds, dies, and heavy workpieces
Designed for repeatable positioning in precision machining applications
Suitable for integration into customized pallets and fixtures
Technical Specifications
Specification Value
RHS Part Number RHS-E033600
OEM Reference Erowa? ER-033600
Product Type MTS Centering Plate P
System MTS
Compatible Chucks MTS / MTS 2.0 / MTS 4.0 / MTS 81 / MTS Single Chuck
Maximum Workpiece Weight Up to 1,000 kg
Maximum Workpiece Size Up to 1,000 ? 1,000 ? 1,000 mm
Mounting Pattern Approx. ?89 mm
Height 15.4 mm
Compatibility Erowa MTS Standard Components
MTS FD Compatibility No
Application Heavy-Duty Precision Workholding / Pallet & Fixture Positioning
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 7 × 7 × 7 cm |
| System Compatibility | Erowa MTS |
| Material |
Is the RHS-E033600 compatible with Erowa ER-033600?
Yes. The RHS-E033600 is designed as an RHS compatible alternative to the Erowa? ER-033600 MTS Centering Plate P for use within compatible MTS standard workholding setups.
What workpiece capacity does the RHS-E033600 support?
The centering plate is designed for workpieces weighing up to 1,000 kg and workpiece dimensions up to 1,000 ? 1,000 ? 1,000 mm, depending on the complete MTS workholding configuration.
Which MTS chucks can the RHS-E033600 be used with?
The RHS-E033600 is designed for compatible MTS, MTS 2.0, MTS 4.0, MTS 81, and MTS Single Chuck configurations. It is intended for MTS standard components and is not compatible with MTS FD components.
