Erowa ER-030479 compatible ProductionChuck 210

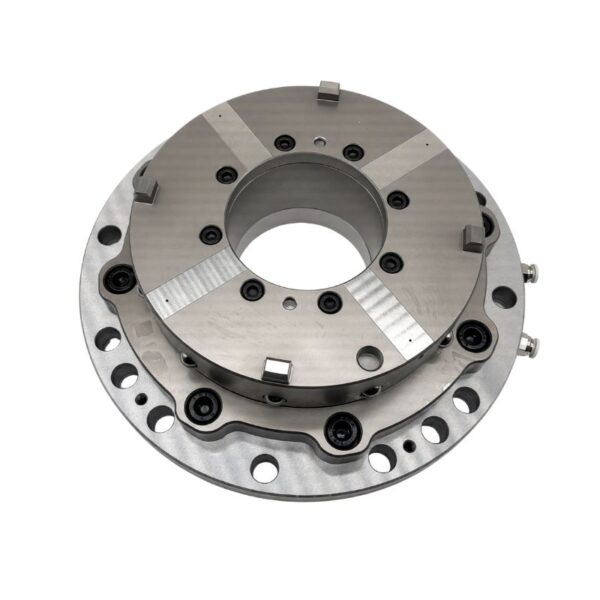

Erowa ER-030479 compatible ProductionChuck 210 - Image 1

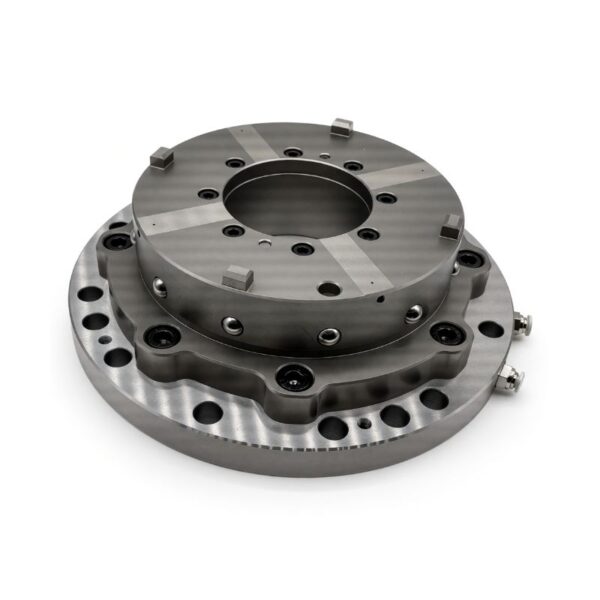

Erowa ER-030479 compatible ProductionChuck 210 - Image 2

Erowa ER-030479 compatible ProductionChuck 210

0 out of 5

( There are no reviews yet. )

$5,600.00

The RHS-E030479 ProductionChuck 210 is a robust workholding chuck designed for high machining forces in chip-cutting applications. Compatible with Erowa? ER-030479, it features an ?81 mm through-bore, low-profile construction, and pneumatic operation. Suitable for milling machines, lathes, and grinding machines with compatible PC 210 pallets.

SKU: RHS-E030479

Save for later

Description
Additional information
FAQs
Reviews (0)

Description

Erowa ER-030479 compatible ProductionChuck 210 ? RHS-E030479
The RHS-E030479 ProductionChuck 210 is a heavy-duty precision workholding chuck designed for machining applications involving high cutting forces. Its low-profile construction provides a stable workholding interface while incorporating an ?81 mm through-bore.
The chuck is pneumatically operated and can be operated laterally with an air gun or through a control unit. The two required connections can be routed laterally or from below, providing flexibility when integrating the chuck into different machine configurations.
Designed as the RHS compatible version of Erowa? ER-030479, the RHS-E030479 is suitable for milling machines, lathes, and grinding machines and is designed for clamping compatible PC 210 pallets.
Technical Specifications
Specification Value
RHS Part Number RHS-E030479
OEM Reference Erowa? ER-030479
Product Type ProductionChuck 210
Operation Pneumatic
Through-Bore ?81 mm
Connection Lateral or From Below
Number of Connection Lines 2
Operation Options Air Gun or Control Unit
Compatible Pallet System PC 210
Applications Milling, Turning & Grinding
Machining Type High-Force Chip Cutting
Compatibility Erowa? ER-030479

Additional information

Weight	5 kg
Dimensions	7 × 7 × 7 cm
Actuation Type	Pneumatic
System Compatibility	PC 210

Is the RHS-E030479 compatible with Erowa ER-030479?

Yes. The RHS-E030479 is designed as a compatible version of the Erowa? ER-030479 ProductionChuck 210 for compatible PC 210 workholding setups.

What machines can the RHS-E030479 be used on?

The RHS-E030479 is suitable for milling machines, lathes, and grinding machines, particularly for applications involving high machining forces.

How is the RHS-E030479 operated?

The chuck is pneumatically operated. It can be operated laterally using an air gun or through a control unit, with the two connections routed laterally or from below.
