Erowa ER-012297 compatible Rapid-Action Pneumatic Chuck

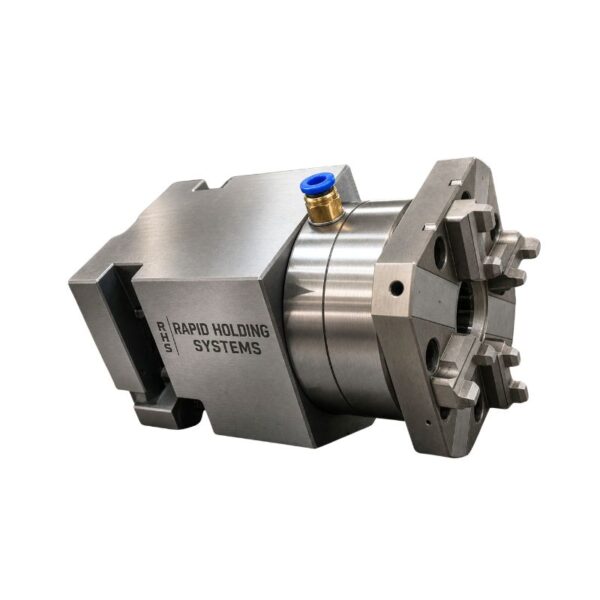

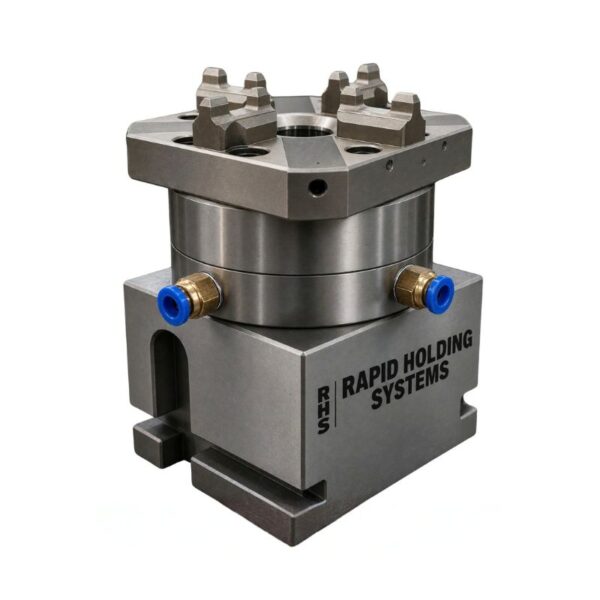

Erowa ER-012297 compatible Rapid-Action Pneumatic Chuck - Image 1

Erowa ER-012297 compatible Rapid-Action Pneumatic Chuck

0 out of 5

( There are no reviews yet. )

$1,425.00

RHS-E9602-3 Rapid-Action Pneumatic Chuck is designed as a precision workholding solution compatible with Erowa? ER-012297. Manufactured from stainless steel, the chuck features pneumatic operation, up to 7,000 N clamping force, and electrical fabrication capability. It is suitable for use in both horizontal and vertical mounting positions.

SKU: RHS-E9602-3

Save for later

Description
Additional information
FAQs
Reviews (0)

Description

Erowa ER-012297 compatible Rapid-Action Pneumatic Chuck – RHS-E9602-3

The RHS-E9602-3 is a precision Rapid-Action Pneumatic Chuck designed for compatibility with Erowa® ER-012297 workholding applications.

Manufactured from stainless steel, the chuck provides a robust and reliable interface for precision EDM and machining setups. Its pneumatic actuation enables quick clamping and unclamping, making it well suited for applications requiring frequent tooling or workpiece changes.

The RHS-E9602-3 provides a clamping force of up to 7,000 N for secure workholding. It is designed for use in both horizontal and vertical positions, providing flexibility when integrating the chuck into different machine configurations.

The chuck is suitable for holding Ø115 mm and Ø148 mm pallets and compatible electrode holders, with the exception of pallets featuring a P-profile.

Key Features

Compatible with Erowa® ER-012297
Rapid-action pneumatic clamping
Up to 7,000 N clamping force
Stainless steel construction
Suitable for EDM and precision machining
Can be used in horizontal or vertical positions
Electrical fabrication capability
Designed for Ø115 mm and Ø148 mm compatible pallets
Suitable for compatible electrode holders
Fast clamping and unclamping for efficient tooling changes

Technical Specifications

Specification	Value
RHS Part Number	RHS-E9602-3
OEM Reference	Erowa® ER-012297
Product Type	Rapid-Action Pneumatic Chuck
Operation	Pneumatic
Material	Stainless Steel
Clamping Force	Up to 7,000 N
Mounting Orientation	Horizontal or Vertical
Compatible Pallet Diameter	Ø115 mm / Ø148 mm
Electrode Holder Compatibility	Yes
P-Profile Pallets	Not Compatible
Application	EDM / Precision Machining / Electrode Workholding
OEM Compatibility	Compatible with Erowa® ER-012297

Additional information

Weight	7 kg
Dimensions	10 × 10 × 7 cm
Actuation Type	Pneumatic
System Compatibility	Erowa ITS

Is the RHS-E9602-3 compatible with Erowa ER-012297?

Yes. The RHS-E9602-3 is designed as a compatible alternative to Erowa? ER-012297, allowing it to be integrated into compatible Erowa workholding setups.

What is the clamping force of the RHS-E9602-3 pneumatic chuck?

RHS-E9602-3 provides a clamping force of up to 7,000 N, providing secure workholding for precision EDM and machining applications.

Which pallets can be used with the RHS-E9602-3?

The chuck is designed for compatible ?115 mm and ?148 mm pallets and electrode holders. Pallets featuring a P-profile are excluded from this compatibility.
