EROWA D2 PROBEEROWA D2 PROBE

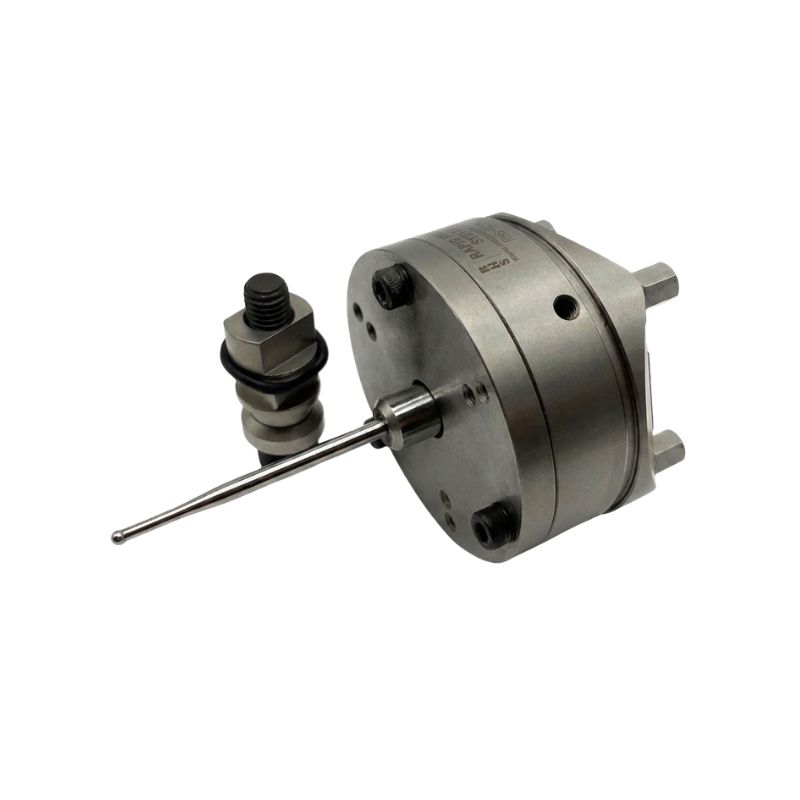

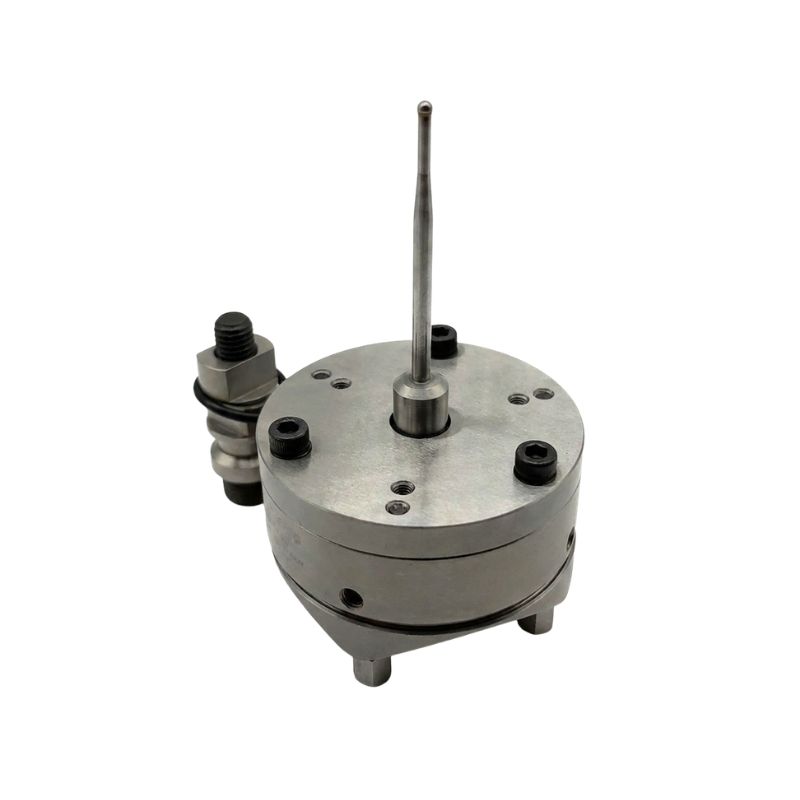

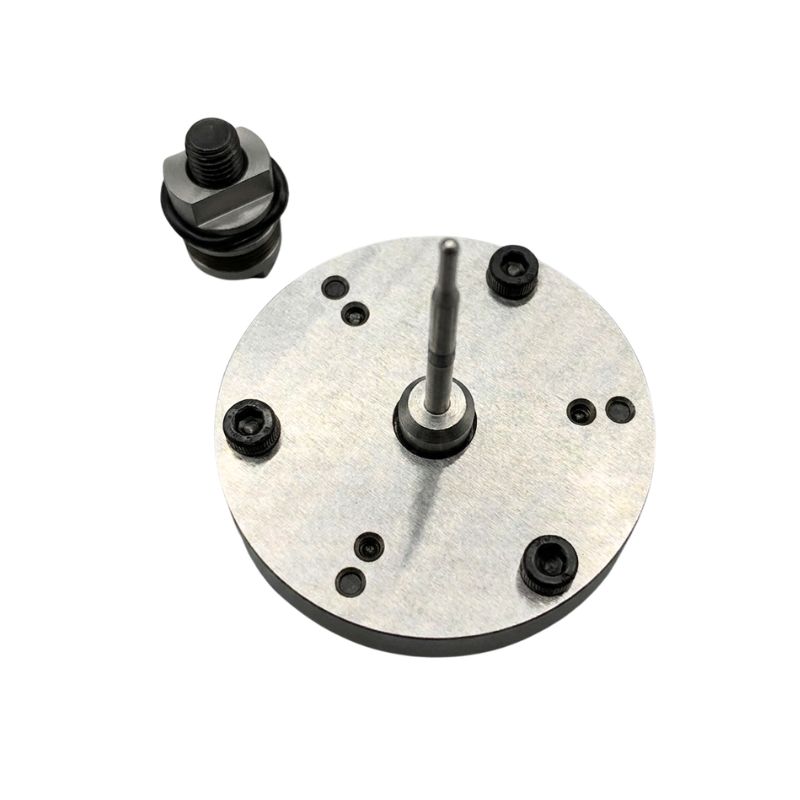

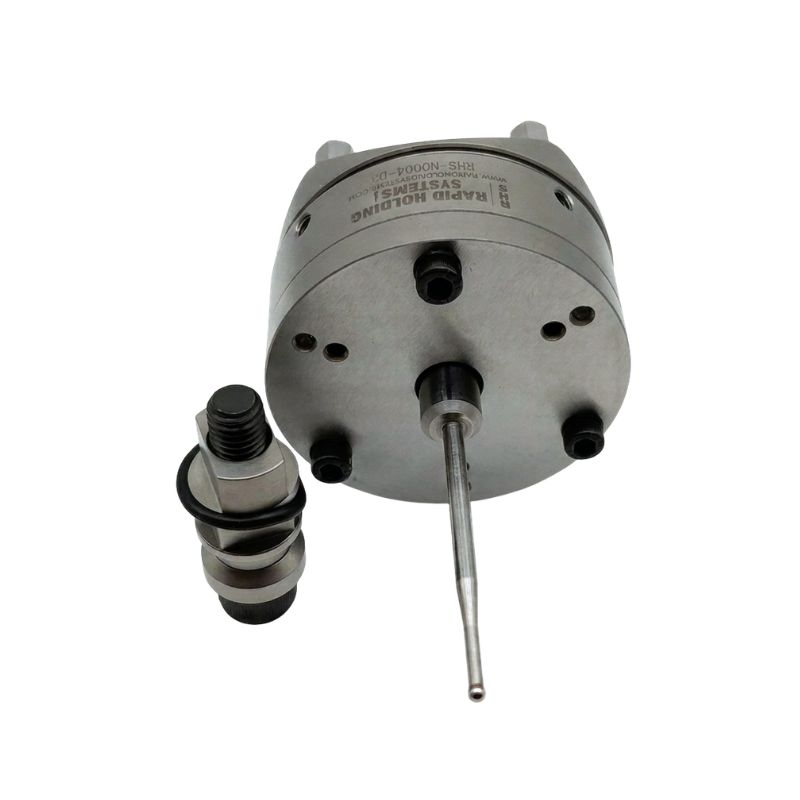

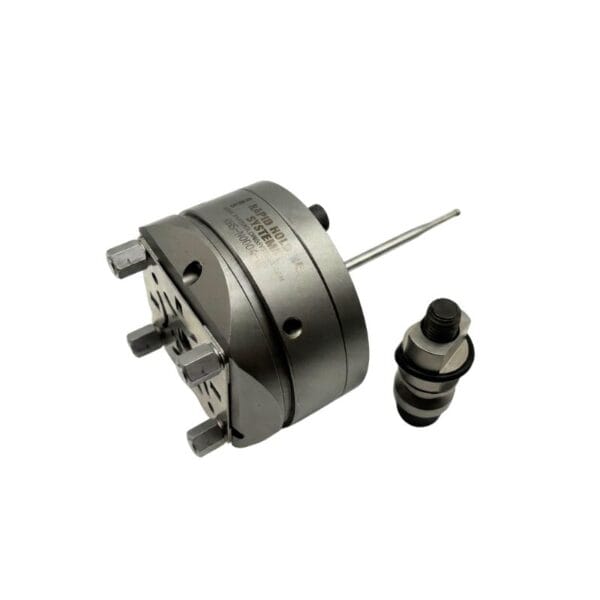

Erowa sensor ER-008638 ER-010562 compatible D2 Spring Loaded Centering Sensor 2mm Tip

$925.00

Erowa ER-008638 ER-010562 compatible D2 Spring Loaded Centering Sensor 2mm Tip

EROWA ER-008638 ER-010562 D2 SPRING CENTERING SENSOR 2MM for the Automatic measurement of workpieces in CNC EDM sinking centers. Spring Loaded Centering Sensor is compatible with EROWA ITS System. It is equivalent to ER-008638 & ER-010562. Holder with spring sensing pin and tungsten carbide ball. It applies to automatically measure specification of workpieces in CNC EDM sinking centers. Repetition accuracy: X,Y,Z 0.002mm

1000 in stock

Get Quote
SKU: RH-N0004-D2 Categories: , Tags: ,

Erowa ER-008638 ER-010562 D2 Spring Loaded Centering Sensor 2mm Tip

EROWA ER-008638 ER-010562 D2 SPRING CENTERING SENSOR 2MM. It is useful because of its Automatic measurement of workpieces in CNC EDM sinking centers. Spring Load Centering Sensor is highly accurate as fully compatible with EROWA ITS System but 50% low in cost. It is equivalent to ER-008638 and ER-010562. Holder with spring loaded sensing pin and tungsten carbide ball comes with 1 pc spigot. Repetition accuracy: X,Y,Z 0.002mm. Overrun protection: X, Y, Z 1 mm. comes with 1 pc spigot. Also available extra replacement tips (note:to be ordered separately)

SPECIFICATION
SIZE 56X56X110mm
MATERIAL STAINLESS STEEL 420 32-36HRC
TOLERENCE CONCENTRICITY TOLERANCE ± 0.005mm
VERSION SPRING LOADED
TIP DIAMETER 2MM

Additional information

Weight 2 kg
Dimensions 10 × 10 × 10 cm
