System 3R-Compatible Wire EDM Workholding: A Guide to Precision and Efficiency

Wire EDM lets you cut intricate shapes with micron-level accuracy. But that precision depends just as much on how the workpiece is held as it does on the machine itself.

A poorly chosen fixture can lead to vibration, misalignment, and wasted setup time. And that eats directly into your cut quality.

What Does a Wire EDM Workholding System Need?

EDM users have specific requirements that protect their investment and keep cut quality consistent. Here’s what matters most:

Corrosion resistance.

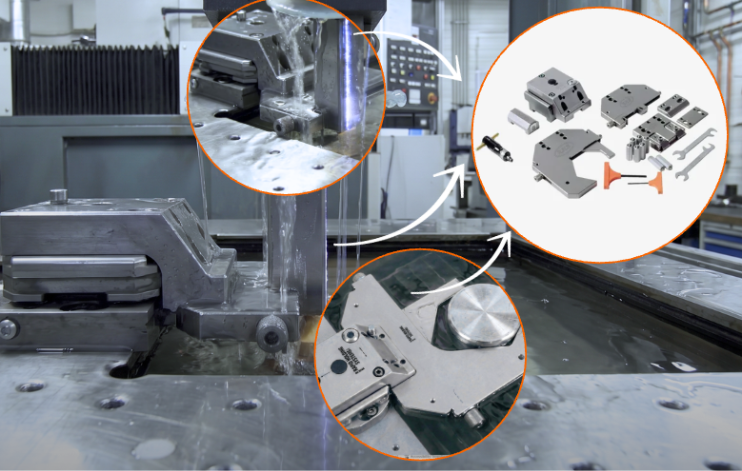

 EDM runs in dielectric fluids, so fixtures need stainless steel or coated alloys, plus drainage channels that make cleaning easier.

Non-magnetic construction.

 Magnetic materials interfere with the discharge and attract debris. High-quality vises use non-magnetic stainless steel or non-conductive coatings to keep the cutting environment clean.

Ground and precise surfaces.

 To hold micron-level tolerances, vise faces must be extremely flat and parallel. Smooth, backlash-free slides let you replicate setups without introducing error.

Modular, flexible design.

 Interchangeable jaws, multi-slot bases, and the ability to clamp vertically or horizontally let you adapt to different geometries and cut setup time significantly.

Secure and repeatable clamping.
Anti-lift jaws and fine-pitch screws deliver uniform pressure during long cuts. The workpiece can be removed and remounted without losing its reference position.

Solutions from Rapid Holding Systems

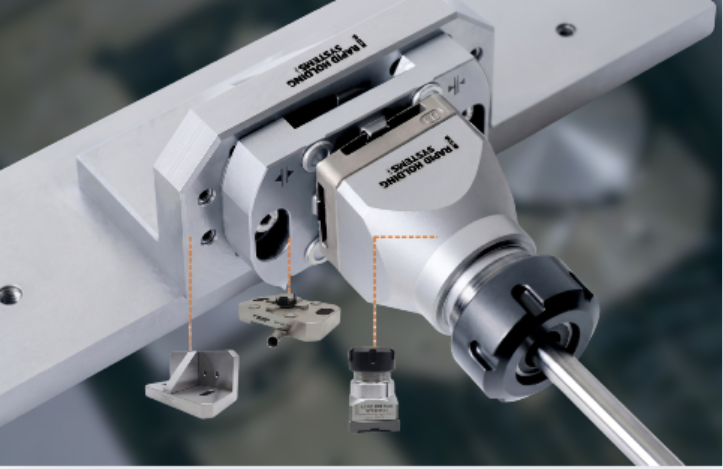

RHS offers a complete range of System 3R-compatible accessories, including chucks, holders, spigots, pallets, plates, gauging devices, and self-centering vises. Every product is engineered to match the tolerances and reference geometry of System 3R, so you can integrate them into your existing setup without losing accuracy.

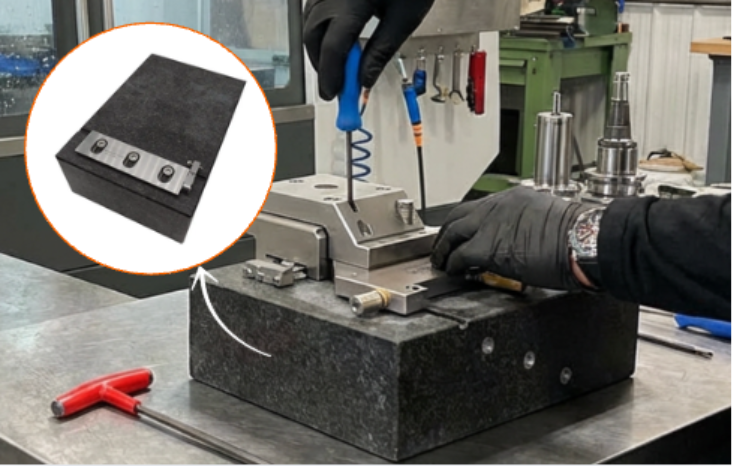

• Universal vises and user kits

For holding rectangular, round, or thin parts on EDM rulers or bases.

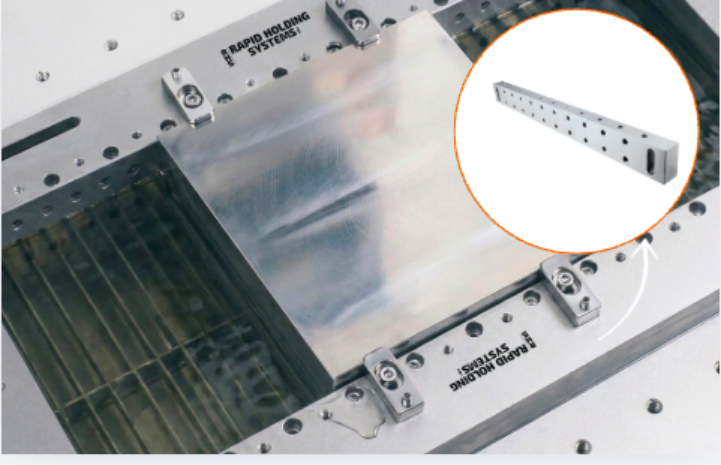

• Modular rulers and reference elements

For positioning and supporting long workpieces with consistency.

• Chucks and adapters

For manual or pneumatic clamping, compatible with HP, Magnum, or MacroTwin leveling systems.

• Precision gauging devices and presetting stones

To speed up setup and ensure consistent referencing every time.

Because all these components share a common reference system, you can mix and match them based on part size, geometry, and process complexity.

Rapid Holding Systems provides an extensive line of System 3R-compatible tools that meet the industry’s toughest requirements for corrosion resistance, precision, modularity, and repeatability.

Investing in a complete tooling ecosystem, rather than isolated fixtures, helps shops maximize productivity, maintain quality, and set themselves up for future growth.
