Zero-Point Base plates 52 with Round Base Ø220x105mm, for Self Centering Vise

Zero-Point Base plates 52 with Round Base Ø220x105mm, for Self Centering Vise

0 out of 5

Precision Zero-Point Base plates 52 with round base designed for self centering vise setups in CNC machining, EDM workholding, and palletized fixture systems. Built from chrome steel and aluminium with 42–60 HRC hardness, this adaptor provides ±0.005mm repeatability and 16000N clamping power. The Ø220x105mm round base design supports stable mounting, accurate vise positioning, and repeatable setup changes for precision machining and automation-ready workholding applications.

SKU: RHS-ZP520005

Ask for Quote

Save for later

Description
Additional information
FAQs
Reviews (0)

Description

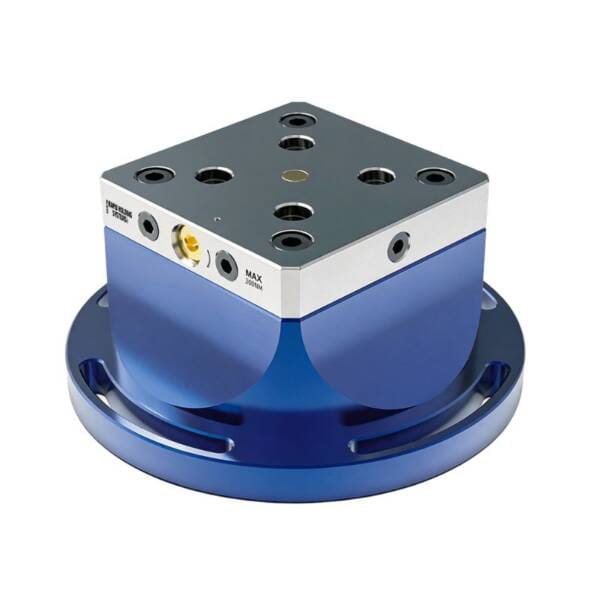

This Ø220x105mm Zero-Point Adaptor with round base is designed to support self centering vise setups in precision CNC workholding applications. The round base provides a stable mounting platform, while the compact top interface helps position the vise accurately for repeatable machining workflows.

Made from chrome steel and aluminium, the adaptor combines rigidity, wear resistance, and practical fixture handling for repeated setup changes. With ±0.005mm repeatability and 16000N clamping power, it helps maintain consistent vise location across CNC machining, 5-axis machining, EDM workholding, and automation-ready fixture systems. The Ø220mm round base format is well suited for shops that need stable positioning, strong clamping performance, and reliable zero-point style fixture changeover.

Specification	Value
Size	Ø220x105mm
Material	Chrome Steel / Aluminium
Compatibility	For Self Centering Vise Fixture Systems
Hardness	42–60 HRC
Repeatability	±0.005mm
Clamping Power	16000N
Net Weight	17.3kg
Round Base Diameter	Ø220mm
Overall Height	105mm

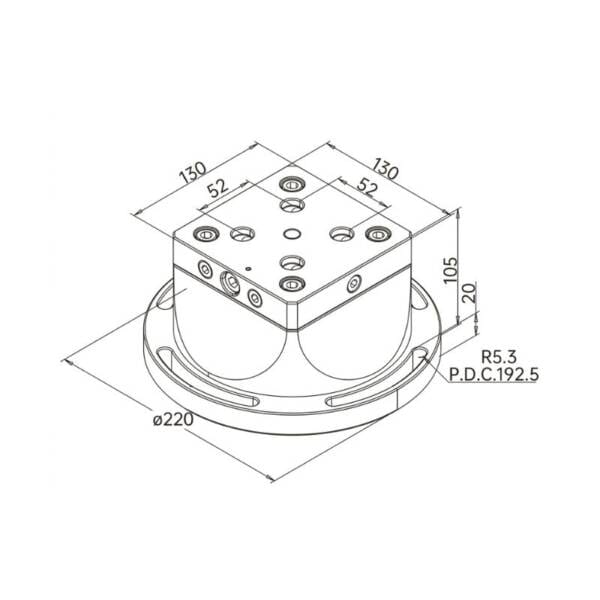

Top Interface Size	130x130mm
Reference Spacing	52mm spacing shown
Base Height Reference	20mm
Radius Reference	R5.3
Pitch Circle Diameter Reference	P.C.D. 192.5mm
Mounting Type	Zero-Point Adaptor with Round Base

________________________________________

Additional information

Weight	17.3 kg
Dimensions	12 × 12 × 12 cm
Material for Vises	Chrome Steel
Compatibility for vises	Universal, Zero-Point Bolts
Zero-Point Adaptable	52mm

What are Zero-Point Base plates 52 with round base used for?

Zero-Point Base plates 52 with round base are used to mount and locate a self centering vise with repeatable positioning. The round base provides stable support for CNC machining, EDM workholding, and palletized fixture setups.

Is this round base adaptor suitable for 5-axis machining?

Yes. The Ø220mm round base provides a stable platform for self centering vise setups, while the repeatable locating design supports 5-axis machining, multi-sided machining, and precision CNC fixture systems.

Why is ±0.005mm repeatability important in a Zero-Point Adaptor?

±0.005mm repeatability helps keep the self centering vise in a consistent position after fixture changes or repeated setups. This is important for precision machining, EDM applications, automation-ready workholding, and production environments where accurate part location matters.
