Zero-Point Base plates 52 for Lathe D120 Ø120x65mm

Zero-Point Base plates 52 for Lathe D120 Ø120x65mm

0 out of 5

Precision Zero-Point Base plates 52 for lathe D120 applications, designed for repeatable CNC workholding, EDM workholding, and palletized fixture setups. Built from hardened chrome steel with 56–60 HRC hardness, this compact round base plate provides ≤0.005mm repeatability and 16kN clamping power. The Ø120x65mm design supports accurate fixture location, stable mounting, and efficient changeover for precision machining environments.

SKU: RHS-ZP520010

Ask for Quote

Save for later

Description
Additional information
FAQs
Reviews (0)

Description

This Ø120x65mm Zero-Point Base plates 52 for lathe D120 setups is designed for precision workholding applications that require repeatable fixture positioning, strong clamping, and compact mounting. The round body format supports lathe-based fixture integration while maintaining a stable interface for CNC machining, EDM workholding, and palletized production workflows.

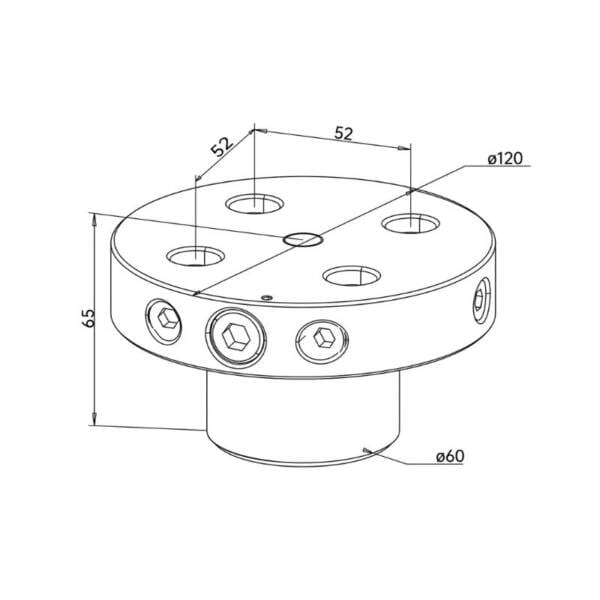

Made from hardened chrome steel, the base plate provides wear resistance, rigidity, and reliable locating performance during repeated setup changes. With ≤0.005mm repeatability and 16kN clamping power, it helps maintain consistent fixture position across machining operations. The Ø120mm top platform, Ø60mm lower locating section, and 52mm hole spacing make this base plate suitable for shops that need accurate fixture changeover, compact workholding, and dependable repeatability in precision machining systems.

Specification	Value
Size	Ø120x65mm
Material	Chrome Steel
Compatibility	For Lathe D120 Fixture Systems
Hardness	56–60 HRC
Repeatability	≤0.005mm
Clamping Power	16kN
Net Weight	2.5kg
Top Diameter	Ø120mm
Lower Locating Diameter	Ø60mm
Overall Height	65mm
Reference Spacing	52mm spacing shown
Mounting Type	Round Zero-Point Base Plate 52 for Lathe D120

________________________________________

Additional information

Weight	2.5 kg
Dimensions	12 × 12 × 12 cm
Material for Vises	Chrome Steel
Compatibility for vises	Universal, Zero-Point Bolts
Zero-Point Adaptable	52mm

What is this Zero-Point Base plates 52 for lathe D120 used for?

This Zero-Point Base plates 52 is used to support repeatable fixture positioning in lathe D120 workholding setups. It helps improve setup consistency, fixture changeover, and locating accuracy in precision CNC machining applications.

Is this base plate suitable for precision machining environments?

Yes. With hardened chrome steel construction, ≤0.005mm repeatability, and 16kN clamping power, this base plate is suitable for precision CNC workholding, EDM workholding, and repeatable fixture systems.

Why is repeatability important in a lathe fixture base plate?

Repeatability helps keep the fixture in a consistent position after setup changes or repeated mounting. This is important for CNC machining, lathe workholding, EDM applications, and production workflows where accurate part location affects final machining quality.
