Zero-Point Base plates 52 130x130x25mm, for Self Centering Vise

Zero-Point Base plates 52 130x130x25mm, for Self Centering Vise

0 out of 5

$1,800.00

Precision Zero-Point Base plates 52 designed for self centering vise setups in CNC machining, EDM workholding, and palletized fixture systems. Built from hardened chrome steel with 56–60 HRC hardness, these compact adaptors provide ±0.005mm repeatability and 16000N clamping power. The 130x130x25mm low-height design helps reduce fixture stack height while maintaining stable, repeatable positioning for precision machining and automation-ready workholding setups.

SKU: RHS-ZP520001

Save for later

Description
Additional information
FAQs
Reviews (0)

Description

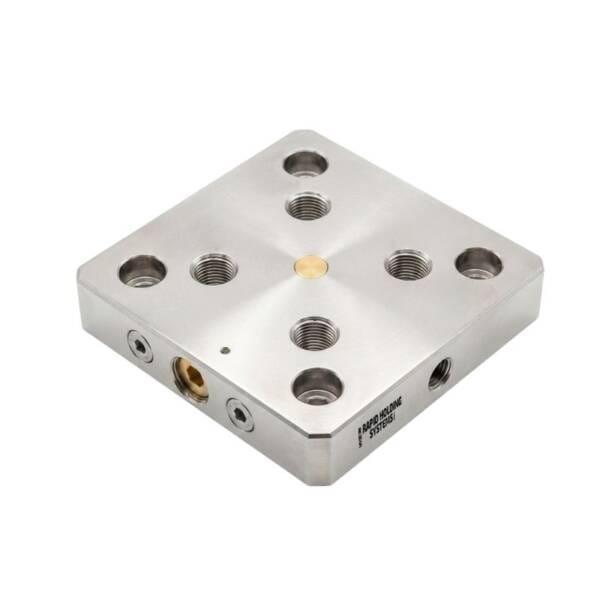

These 130x130x25mm Zero-Point Base plates 52 are designed to support self centering vise setups in precision CNC workholding applications. The compact 25mm height helps reduce overall fixture stack height, improving tool clearance, part access, and machine envelope efficiency in 4th axis, 5 axis, EDM, and automated machining environments.

Made from hardened chrome steel, the adaptors provide excellent rigidity, wear resistance, and stable locating performance during repeated setup changes. With ±0.005mm repeatability and 16000N clamping power, they help maintain consistent vise positioning across production runs. The 130x130mm square format provides a strong, repeatable base for precision workholding systems where accuracy, stability, and fast fixture changeover are critical.

Specification	Value
Size	130x130x25mm
Material	Chrome Steel
Compatibility	For Self Centering Vise Fixture Systems
Hardness	56–60 HRC
Repeatability	±0.005mm
Clamping Power	16000N
Net Weight	2.75kg
Overall Length	130mm
Overall Width	130mm
Overall Height	25mm

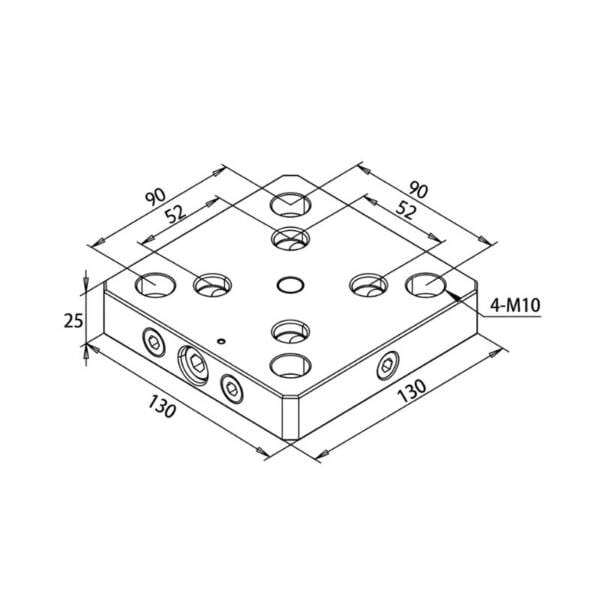

Mounting Hole Pattern	4 x M10 threaded mounting holes
Reference Spacing	52mm and 90mm spacing shown
Mounting Type	Zero-Point Adaptor Plate

________________________________________

Additional information

Weight	2.75 kg
Dimensions	13 × 13 × 2.5 cm
Material for Vises	Chrome Steel
Compatibility for vises	Universal, Zero-Point Bolts
Zero-Point Adaptable	52mm

What are Zero-Point Base plates 52 used for with a self centering vise?

Zero-Point Base plates 52 are used to mount and locate a self centering vise with repeatable positioning. They help reduce setup variation, improve fixture changeover, and support precision CNC workholding, EDM workholding, and automation-ready machining setups.

Are these Zero-Point Base plates 52 suitable for 5-axis machining?

Yes. The compact 25mm height helps reduce fixture stack height, which is useful in 5-axis machining where tool clearance, part access, and compact workholding are important.

Why is repeatability important in a Zero-Point Adaptor?

Repeatability helps keep the self centering vise in a consistent position after fixture changes or repeated setups. This is important for precision machining, palletized workholding systems, EDM applications, and production environments where accurate part location matters.
