System 3R Compatible Manual Chuck & U30 Electrode Holder Bundle
Original price was: $1,248.00.$1,223.04Current price is: $1,223.04.
SKU: RHS-S4595-B02
Build your manual electrode setup with three essential components in one bundle: a Macro-compatible manual chuck, a short drawbar, and a stainless steel U30 slotted holder.
A practical choice for shops adding an electrode holding station or expanding their existing System 3R Macro-compatible tooling.
• Includes one chuck, five short drawbar, and five U30 holder
• Manual screw locking
• Four chuck indexing positions at 90°
• Stainless steel U30 holder supplied pre-mounted on a pallet
• RHS technical support to help you select the right setup
Original price was: $1,171.00.$1,147.58Current price is: $1,147.58.
-
+
Original price was: $34.00.$33.32Current price is: $33.32.
-
+
Original price was: $43.00.$42.14Current price is: $42.14.
Build your manual electrode setup with three essential components in one bundle: a Macro-compatible manual chuck, a short drawbar, and a stainless steel U30 slotted holder.
A practical choice for shops adding an electrode holding station or expanding their existing System 3R Macro-compatible tooling.
• Includes one chuck, five short drawbar, and five U30 holder
• Manual screw locking
• Four chuck indexing positions at 90°
• Stainless steel U30 holder supplied pre-mounted on a pallet
• RHS technical support to help you select the right setup
Original price was: $1,171.00.$1,147.58Current price is: $1,147.58.
-
+
Original price was: $34.00.$33.32Current price is: $33.32.
-
+
Original price was: $43.00.$42.14Current price is: $42.14.
- Description
- Additional information
- FAQs
- Reviews (0)
Description
Spend less time selecting tooling. Get your electrode setup together.
Selecting a chuck, drawbar, and electrode holder separately takes time. This bundle brings the three components together for shops building or expanding a manual Macro-compatible electrode holding setup.

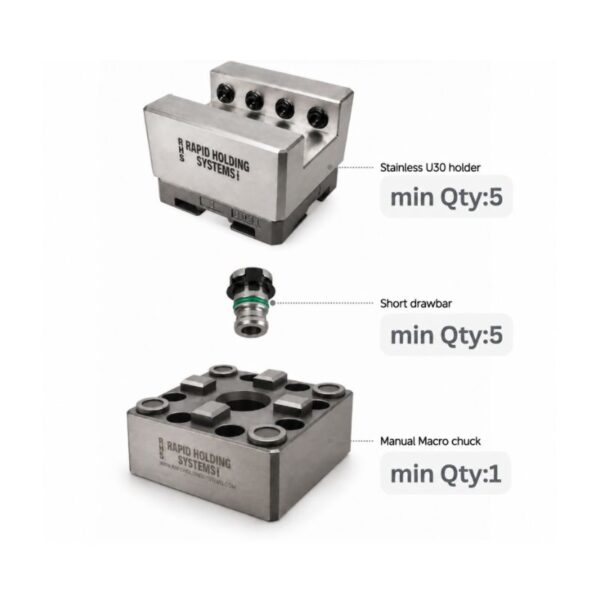

The chuck provides the clamping interface, the short drawbar connects the holder assembly to the chuck, and the U30 slotted holder provides the electrode mounting point.
Use it to add another manual station, prepare tooling for upcoming jobs, or expand the holders available for your existing workflow.
APPLICATIONS
- Manual electrode holding for sinker EDM workflows
- Additional Macro-compatible tooling stations
- Toolroom and moldmaking electrode preparation
- Expansion of existing manual electrode holding setups
HOW THE COMPONENTS WORK TOGETHER
- Mount the chuck on a suitable machine interface or fixture.
- Fit the short drawbar to the holder assembly.
- Secure the electrode in the U30 holder using the appropriate mounting method.
- Seat the assembly in the chuck and lock it according to the product instructions.
- Verify alignment, clearance, and secure clamping before operation.
Additional information
| Weight | 3 kg |
|---|---|
| Dimensions | 14 × 14 × 7 cm |
Does this bundle require compressed air?
The included chuck uses manual screw locking.
Is the U30 holder supplied with a pallet?
Yes. The listed RHS-S6277-3 holder is supplied pre-mounted on a pallet.
Does the drawbar’s flushing hole provide through-flushing through the complete assembly?
A drawbar flushing hole alone does not establish a complete flushing path. Contact RHS to review your application.
Will this mount directly to my machine?
The chuck requires a suitable mounting interface or fixture. Send us your machine model and mounting details so we can review the setup.
Can I use this for CNC machining?
Contact RHS with your workpiece, operation, and cutting requirements so we can assess suitability for your application.
