System 3R Compatible Manual Chuck & S25 Electrode Holder Bundle
Price range: $28.00 through $1,171.00
Prepare multiple electrodes for your next job with one manual Macro-compatible chuck, stainless steel S25 holders, XS pallets, and short drawbars.
Each holder has its own pallet and drawbar, allowing you to prepare separate electrode assemblies and exchange them in the same chuck.
• Manual chuck with four indexing positions at 90°
• Stainless steel S25 electrode holders
• 54 × 54 mm XS pallets
• 5 short manual drawbars
• RHS support to help you check your setup
- Description
- FAQs
- Reviews (0)
Description
Why choose this bundle?
Jobs that require several electrodes need more than a single holder. This bundle gives you the components for five separate electrode assemblies, together with one manual chuck.
Keep each electrode mounted in its own holder and move between assemblies as the job progresses. The included XS pallets and short drawbars provide the related mounting components, making selection and ordering easier.
• Prepare several electrodes: Equip five holders for different electrodes or upcoming operations.
• Reduce repeated mounting: Keep electrodes in their individual holders between uses.
• Simplify purchasing: Get the chuck, holders, pallets, and drawbars in one order.
• Use manual clamping: Operate the chuck without a compressed-air supply.
• Get help with fit: Send RHS your machine and electrode details for a setup review.
WHAT’S INCLUDED
RHS part number Component Compatible reference
RHS-S4595 Macro manual chuck 3R-600.24-4RS

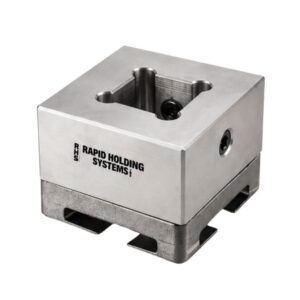

RHS-S7743.25S Stainless steel S25 electrode holder 3R-658.4E-S

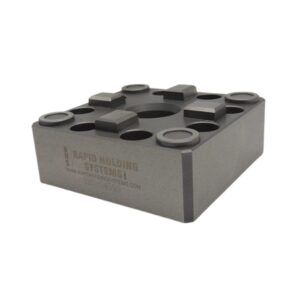

RHS-S5368 54 × 54 mm Macro XS pallet 3R-651.7E-XS

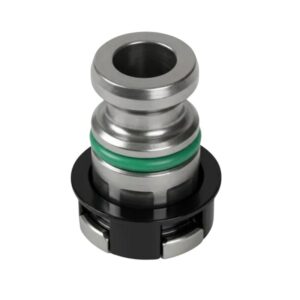

RHS-S4550 Short manual drawbar 3R-605.2E / 3R-605.2RS
APPLICATIONS
• Sinker EDM jobs requiring multiple electrodes
• Toolroom and moldmaking electrode preparation
• Additional electrode assemblies for existing Macro-compatible workflows
• Shops adding a manual electrode holding station
Can I hold five electrodes at the same time?
The bundle includes one chuck, which accepts one holder assembly at a time. The five holders allow you to prepare separate electrodes for successive operations.
Can the S25 holders accept round electrodes?
The holders are listed for square or round electrodes. Contact RHS with your electrode dimensions to confirm fit.
Does this bundle require compressed air?
No. The included chuck uses manual screw locking.
