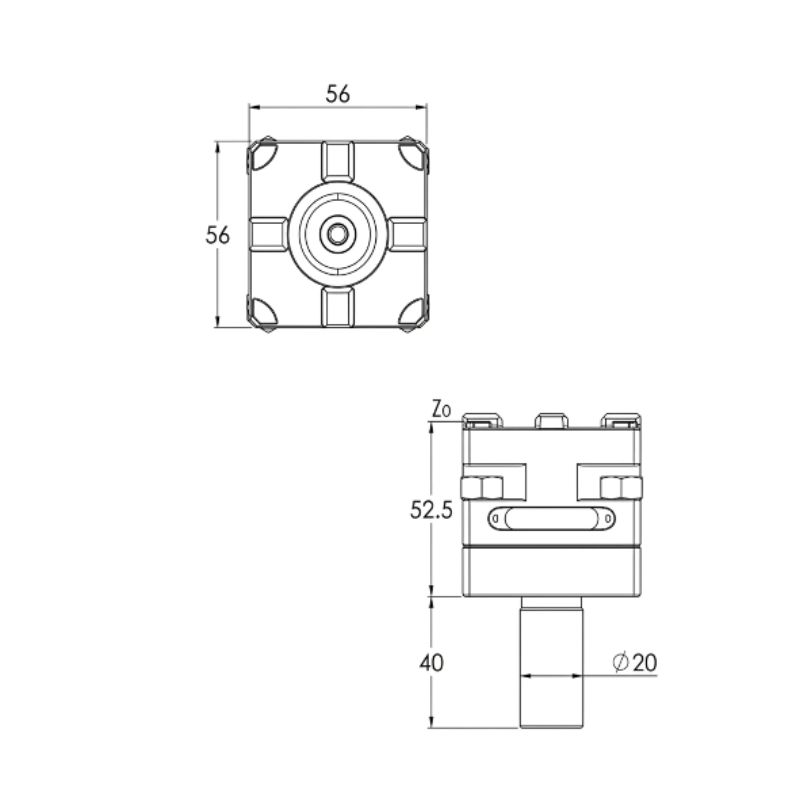

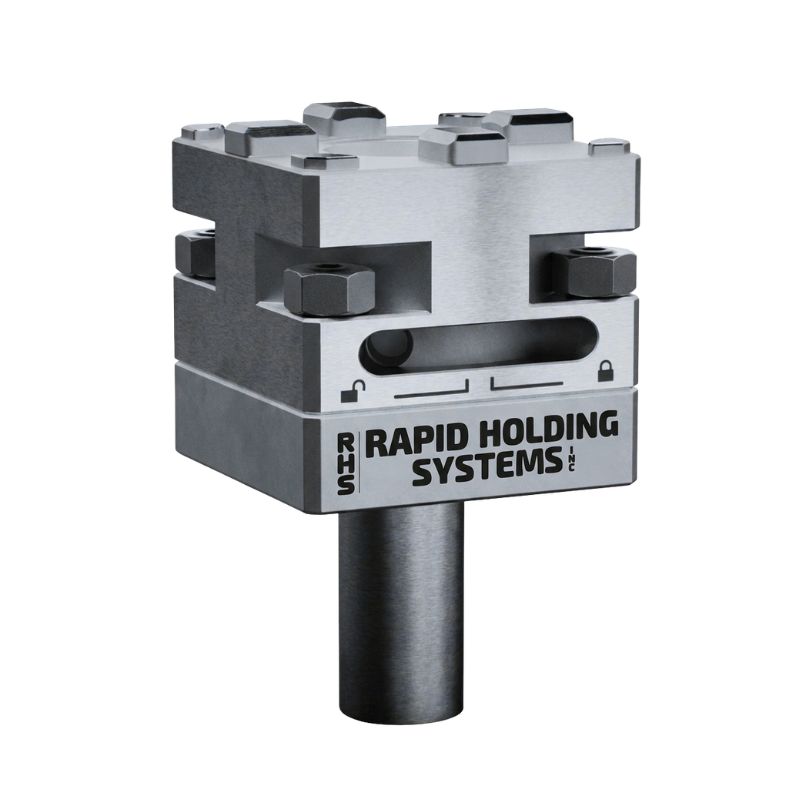

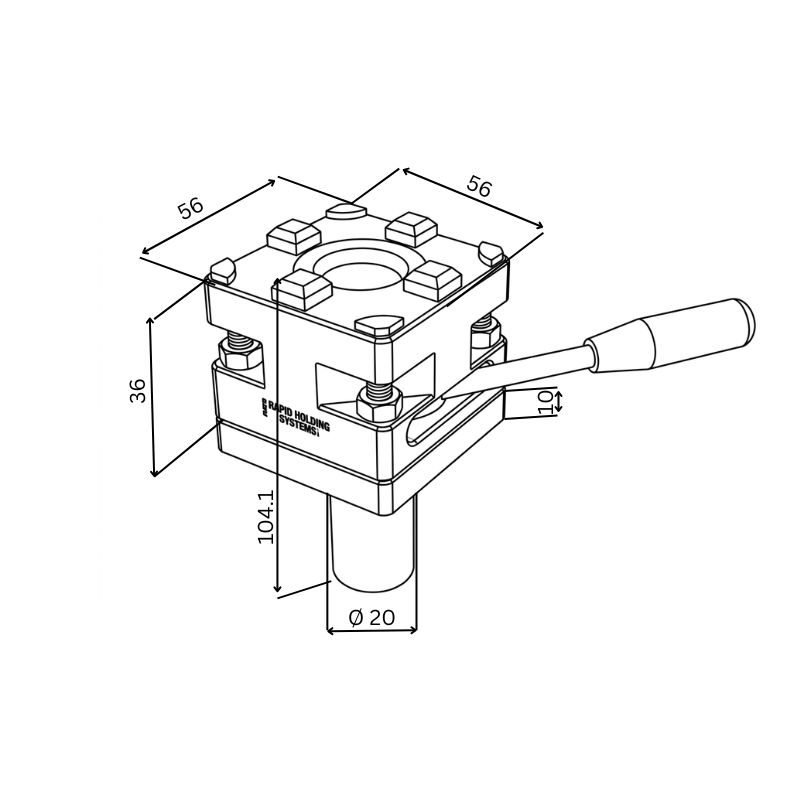

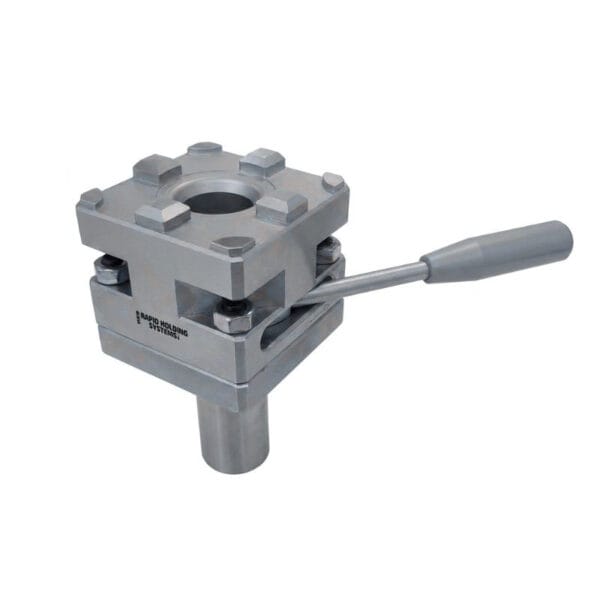

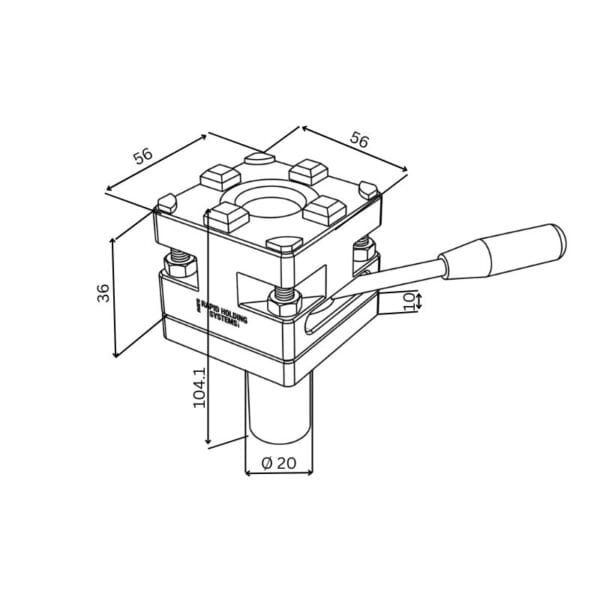

System 3R Compatible 3R-600.24-S Macro 54 Manual Quick Chuck with 20mm Round Connection Rod
$968.00
System 3R compatible 3R-600.24-S Macro 54mm manual quick chuck with 20 mm round connection rod designed for EDM, Wire EDM, and lathe applications. This configuration allows stable chuck mounting on round tool posts or adapters while maintaining precise System 3R referencing.
- Description
- Additional information
- FAQs
- Reviews (0)
Description
The System 3R compatible 3R-600.24-S Macro 54 manual quick chuck with a 20 mm round connection rod provides flexible mounting for EDM, Wire EDM, and lathe-based setups. The integrated quick chuck ensures secure clamping and accurate referencing for System 3R Macro pallets and electrode holders. Manufactured from corrosion-resistant stainless steel, the assembly offers durable performance and consistent positioning in demanding machining environments.
| Specification | Value |
|---|---|
| Compatibility | System 3R 3R-600.24-S |
| System | Macro 54 |
| Product Type | Manual Quick Chuck Assembly |
| Connection Type | 20 mm Round Connection Rod |
| Operation | Manual Clamping |
| Material | Stainless Steel |
| Application | EDM, Wire EDM, and Lathe Workholding |
| Use | Pallet and Electrode Holder Clamping |
Additional information
| Weight | 1.09 kg |
|---|---|
| Dimensions | 7 × 7 × 7 cm |
Is this quick chuck compatible with System 3R Macro 54 tooling systems?
Yes. The chuck is designed to match the System 3R Macro 54 interface and supports compatible pallets and electrode holders.
What is the purpose of the 20 mm round connection rod?
The round rod allows the chuck to be mounted in lathe tool holders, adapters, or custom fixtures requiring a cylindrical mounting interface.
Can this chuck be used in EDM machining setups?
Yes. The chuck provides stable clamping and precise referencing for EDM and Wire EDM applications using System 3R Macro tooling.
