Name: System 3R 3R-651.3 Compatible 3Refix Macro Pallet 52x52 mm
SKU: RHS-S651.3
Price: 475.00 USD
Availability: InStock

System 3R 3R-651.3 Compatible 3Refix Macro Pallet 52x52 mm

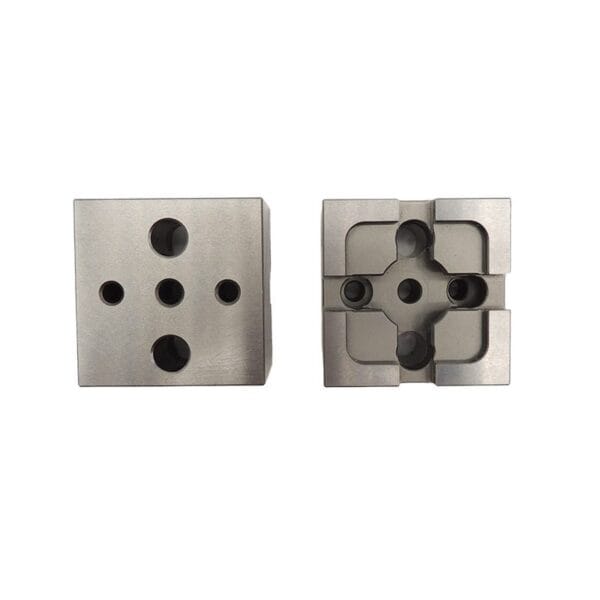

System 3R 3R-651.3 Compatible 3Refix Macro Pallet 52x52 mm - Image 1

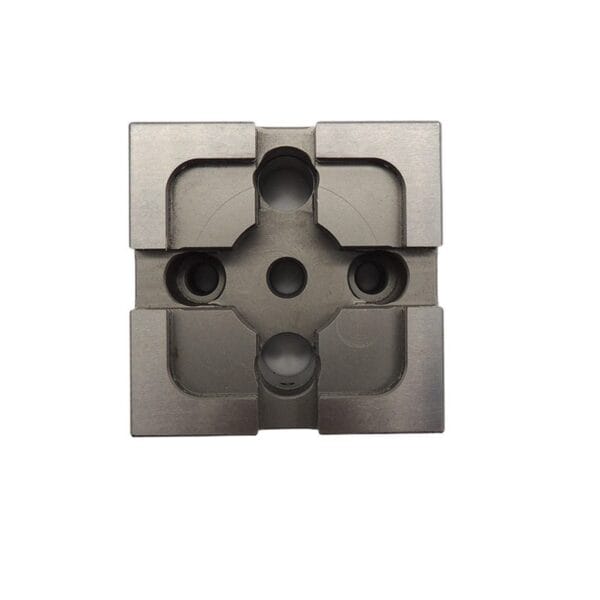

System 3R 3R-651.3 Compatible 3Refix Macro Pallet 52x52 mm - Image 2

System 3R 3R-651.3 Compatible 3Refix Macro Pallet 52x52 mm - Image 3

System 3R 3R-651.3 Compatible 3Refix Macro Pallet 52x52 mm - Image 4

System 3R 3R-651.3 Compatible 3Refix Macro Pallet 52x52 mm - Image 5

System 3R 3R-651.3 Compatible 3Refix Macro Pallet 52×52 mm

0 out of 5

( There are no reviews yet. )

$475.00

System 3R 3R-651.3 Compatible 3Refix Macro Pallet

System 3R 3R-651.3 Compatible 3Refix Macro Pallet 52×52 mm Hardened, with 3Refix holes, flushing connection and clearance holes for two fixing screws.
– Fixed index positions 4×90°.
– Flushing duct.
– 3Refix Ø10 mm.
– Parallel-ground top and bottom faces.
– Ready for code carrier.
– Adapted for automatic changing.
– Rust-resistant.

SKU: RHS-S651.3

Save for later

Description
Additional information
Reviews (0)

Description

The RHS 3R-651.3 Compatible 3 Refix Macro Pallet 52 x 52 mm provides a standardized, stable interface for mounting workholding fixtures and electrodes in precision machining and EDM applications. Designed to optimize setup efficiency, this pallet enables repeatable referencing across compatible machine tables and tooling stations operating on the System 3 R Macro interface.

Designed as the RHS compatible version of System 3 R® 3R-651.3, this 52 x 52 mm 3 Refix Macro pallet integrates directly into existing System 3 R Macro Standard workholding systems. Manufactured from stainless steel, it offers robust corrosion resistance and high structural integrity to maintain accuracy in wet machining and EDM environments.

Key Features

OEM Compatibility: Designed for compatibility with System 3 R® 3R-651.3 and System 3 R Macro Standard systems.
Product Type: 3 Refix Macro Pallet.
Material: Stainless steel construction for corrosion resistance and dimensional stability.
Pallet Dimensions: 52 x 52 mm.
System Interface: System 3 R Macro Standard interface.
Primary Application: Precision workholding integration for EDM and milling operations.

Technical Specifications

Product Type	3 Refix Macro Pallet
Compatibility	System 3 R® 3R-651.3
System Application	System 3 R Macro Standard
Material	Stainless Steel
Dimensions	52 x 52 mm
