System 3R 3R-201J compatible WEDM 90 degree Adapter

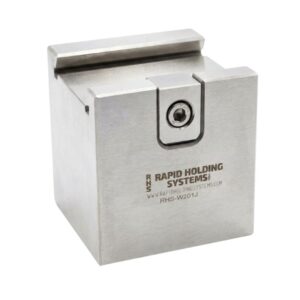

System 3R 3R-201J compatible WEDM 90 degree Adapter - Image 1

System 3R 3R-201J compatible WEDM 90 degree Adapter

0 out of 5

( There are no reviews yet. )

$1,375.00

The RHS-W201J WEDM 90? Adapter is designed to mount a 3R-602.27-1 compatible Manual Macro Chuck at a 90? orientation for Wire EDM machining applications. It provides a rigid and precise mounting platform for horizontal workpiece positioning and is compatible with the System 3R WEDM tooling system.

SKU: RHS-W201J

Save for later

Description
Additional information
FAQs
Reviews (0)

Description

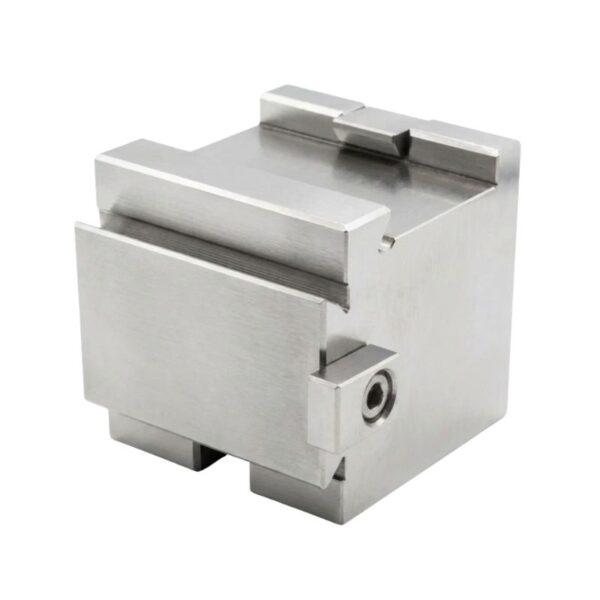

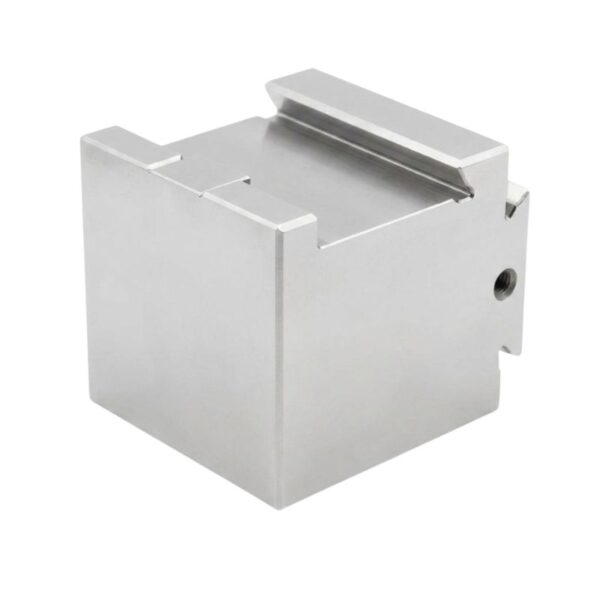

The RHS-W201J is a precision 90-degree adapter for Wire EDM applications, designed as the RHS version of System 3R? 3R-201J.

The adapter enables a 3R-602.27-1 compatible Manual Macro Chuck to be installed at a 90? angle, providing a practical solution when the workpiece needs to be positioned vertically or perpendicular to the standard machine-table setup.

Designed as a basic element for WEDM and 3D workholding accessories, the RHS-W201J provides a rigid interface for accurate and repeatable machining setups. It is suitable for use with compatible System 3R and RHS workholding components, allowing it to be incorporated into existing WEDM tooling systems.

Key Features
RHS version of System 3R? 3R-201J
100% compatible with System 3R WEDM tooling
Provides 90? mounting orientation
Designed for mounting a 3R-602.27-1 compatible Manual Macro Chuck
Suitable for Wire EDM machining applications
Basic mounting element for WEDM and 3D accessories
Fits compatible System 3R basic elements
Rigid construction for precision workholding
Recommended tightening torque of 7 Nm
Suitable for existing RHS and System 3R workholding setups
Technical Specifications
Specification Value
RHS Part Number RHS-W201J
OEM Reference System 3R? 3R-201J
Product Type WEDM 90? Adapter
Mounting Angle 90?
Application Wire EDM / WEDM
Compatible Chuck 3R-602.27-1 compatible Manual Macro Chuck
Compatibility System 3R WEDM tooling system
Mounting Fits compatible System 3R basic elements
Tightening Torque 7 Nm
Approx. Dimensions 70 ? 70 ? 70 mm
Weight 2.7 kg (5.95 lb)
OEM Compatibility 100% compatible with System 3R?

Additional information

Weight	1 kg
Dimensions	7 × 7 × 7 cm
Actuation Type	Manual
System Compatibility	System 3R
Material	Stainless Steel

What is the RHS-W201J WEDM 90? Adapter used for?

The RHS-W201J is used to position compatible workholding tooling at a 90? angle in a Wire EDM machine. It is particularly useful when the machining setup requires the workpiece or chuck to be oriented perpendicular to the standard machine-table position.

Can the RHS-W201J be used with a 3R-602.27-1 Manual Macro Chuck?

Yes. The RHS-W201J is designed to install a 3R-602.27-1 compatible Manual Macro Chuck at a 90? orientation, providing a rigid workholding setup for WEDM machining applications.

Is the RHS-W201J compatible with System 3R WEDM tooling?

Yes. The RHS-W201J is the Rapid Holding Systems version of System 3R 3R-201J and is designed to be 100% compatible with the corresponding System 3R WEDM tooling system and basic elements.
