EROWA COMPATIBLE ER-008638 D8 Centering senser
ER-008638 ER-010562
ER-008638 ER-010562
ER-008638 ER-010562
erowa sensor D8

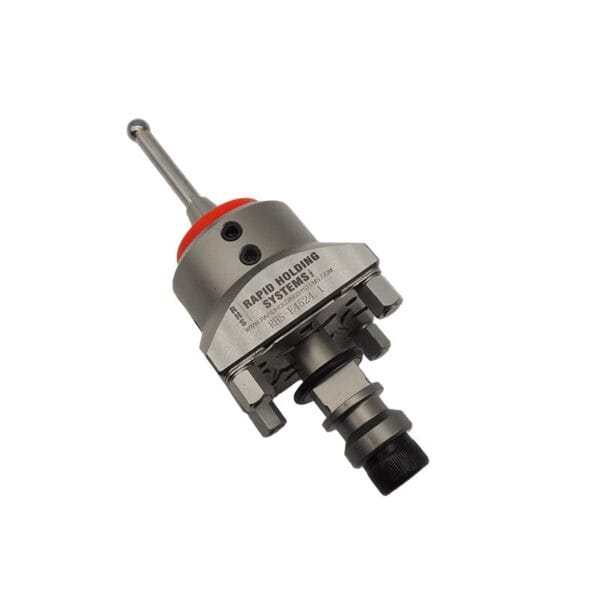

Erowa sensor ER-008638 compatible D8 Centering sensor Stationary Tip 8mm

$465.00

Erowa ER-008638 ER-010562 compatible D8 Centering Sensor Stationary 8mm tip

EROWA ER-008638 ER-010562 D8 SPRING CENTERING SENSOR 8MM. Equivalent to ER-008638 and ER-010562. Holder with stationary sensing pin and tungsten carbide ball comes with 1 pc spigot. Repetition accuracy: X,Y,Z 0.002mm. Overrun protection: X, Y, Z 1 mm.

Get Quote
SKU: RHS-E4524.1 Categories: , Tag:

Erowa ER-008638 compatible D8 Centering sensor Stationary Tip 8mm

Erowa ER-008638 compatible D8Centering sensor Stationary Tip 8mm. It is useful because of its Automatic measurement of workpieces in CNC EDM sinking centers. Stationary tip Centering Sensor is highly accurate as fully compatible with EROWA ITS System but 50% low in cost. It is equivalent to ER-008638 and ER-010562. Holder with stationary sensing pin and tungsten carbide ball comes with 1 pc spigot. Repetition accuracy: X,Y,Z 0.002mm. Overrun protection: X, Y, Z 1 mm. comes with 1 pc spigot. Also available extra replacement tips (Note:Extra tip to be ordered separately)

SPECIFICATION
SIZE 51X51X120mm
MATERIAL STAINLESS STEEL 420 32-36HRC
TOLERENCE CONCENTRIC TOLERANCE ± 0.002mm
VERSION STATIONARY TIP
BALL DIA 8MM



Additional information

Weight 2 kg
