Why the Right Wire EDM Setup Kit Can Save You Hours—and Help You Hit Tolerance

Stop wasting time adjusting fixtures. Here’s how System 3R-compatible tools can transform your EDM setup—and your results.

Frustrated With Wire EDM Setups That Just Don’t Work?

If you’re in Wire EDM Machining, you already know the pain: your machine is programmed, everything’s ready—and then you hit a setup issue.

The clamp doesn’t fit. The fixture isn’t aligned. You’re chasing tolerances by feel. And now you’re wasting valuable time and risking scrap.

This is the hidden cost of incompatible or makeshift EDM tooling—delays, part failures, and endless adjustments.

But what if your setup kit made the process fast, predictable, and accurate?

Meet the 3R-242HP-Compatible Wire EDM Setup Kit

At Rapid Holding Systems, we’ve designed a setup solution for real machinists working with System 3R EDM tables. Our 3R-242HP-Compatible Kit is built to help you save time, reduce scrap, and get back to cutting—faster and more accurately.

This isn’t just a collection of parts—it’s a system designed for repeatability, tight tolerances, and setup efficiency.

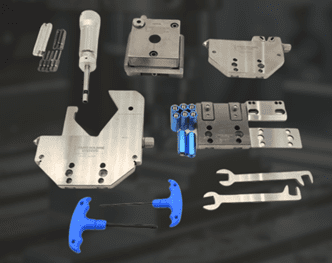

What’s Inside the WireEDM Clamping Kit?

This setup kit includes everything you need for secure, fast, and accurate fixturing:

  • 3R-225 Compatible Reference Stop – helps prevent overtravel and defines machine origin
  • 3R-272HP Compatible Leveling Adapter – 3-axis adjustment to dial in precise alignment
  • Three SuperVices – versatile clamps for round and square parts (Ø8–90 mm)
  • Torque Wrench (7 Nm) – protects your tooling from overtightening
  • Allen Keys (3 mm and 5 mm) – included for quick setup on the machine table

All components share the same bolt pattern and dowel configuration, making it easy to switch between parts without realigning from scratch.

Built for the Realities of Your WEDM Shop Floor

While some kits claim to be “universal,” this kit is engineered specifically for System 3R wire EDM machines like Makino, Mitsubishi, Sodick, and AgieCharmilles.

3-point leveling makes it simple to align in X, Y, and Z.

Eccentric dowels let you fine-tune for micron-level adjustments.

All-metal construction ensures repeatability and long-term durability.

Interchangeable vises hold everything from small squares to awkward round parts.

Setup Demonstration: From Table to Tolerance in Minutes

Here’s how it works, step-by-step:

  1. Mount the leveling head onto your pre-aligned rail system.
  2. Use the eccentric screw to align your fixture side-to-side.
  3. Adjust the back and side screws for front-to-back and depth alignment.
  4. Install your preferred clamping system—flat vise, lobster claw, or universal.
  5. Place your workpiece, torque it with the included wrench, and you’re cutting.

No shimming. No guesswork. No wasted time.

https://youtu.be/bJd2-zrhuy4

Is Your Current Tooling Helping—or Holding You Back?

With tighter tolerances and shorter deadlines, you need tooling that works as hard as you do.

The System 3R-Compatible 3R-242HP Kit gives you a proven path to quicker setups, better results, and lower stress in every production run.

Ready to Upgrade Your Wire EDM Workflow?
